Syngene G:BOX Chemi XX6|Gel Documentation and ECL Detection
Choices(Required)
Please let us know what's on your mind. Have a question for us? Ask away.

Syngene G:BOX Chemi XX6|Gel Documentation and ECL Detection

Short Description

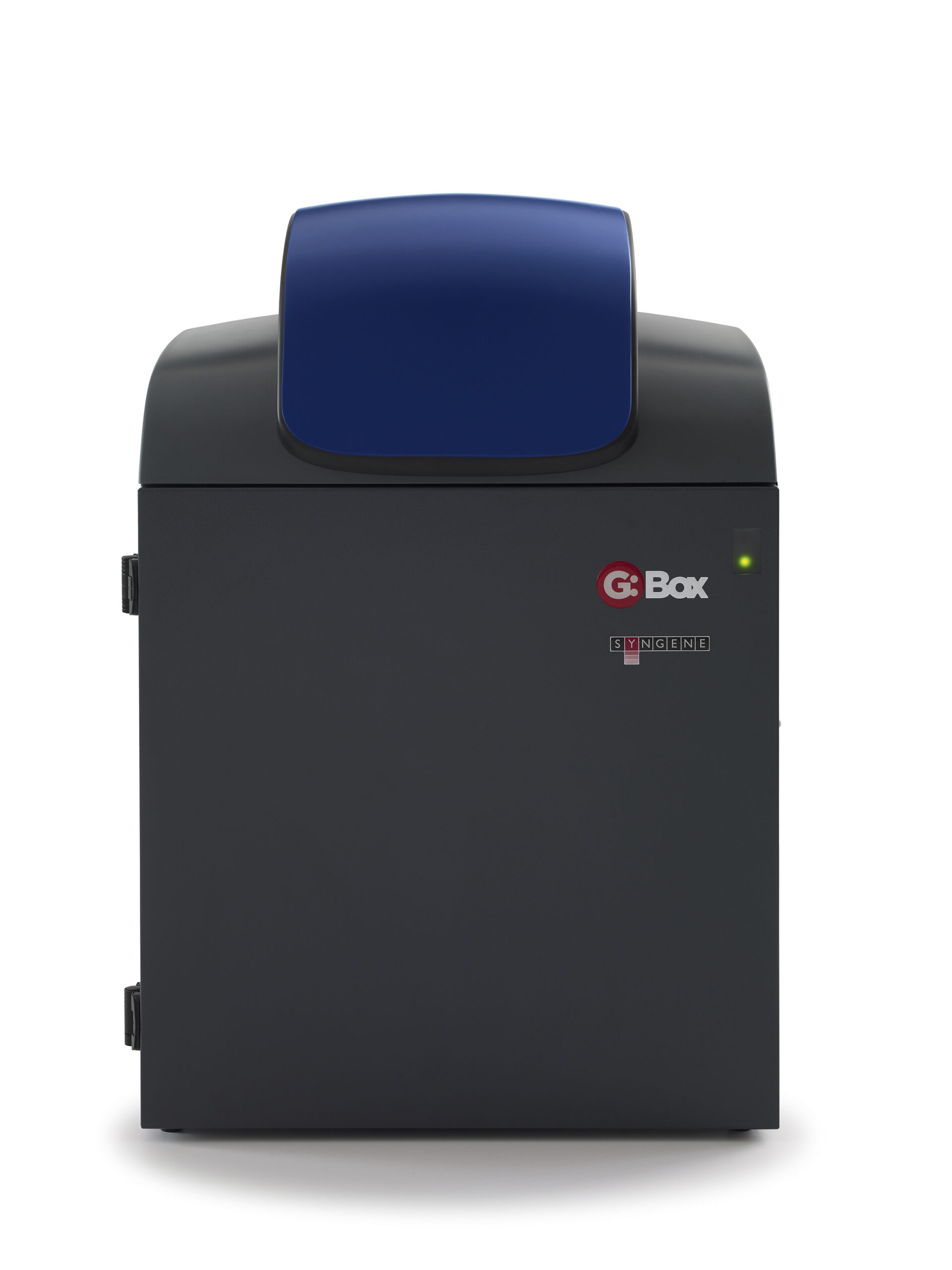

G:BOX CHEMI XX6

For high performance imaging, the G:BOX Chemi series systems provide the user with an extended range of applications covering fluorescence and chemiluminescence.

Syngene is the most popular gel documentation system in New England.

If raw data, high sensitivity, image resolution, an affordable price, and great service are important factors in making your decision for a gel  imaging system, contact us or call (617)286-4632.

G:BOX CHEMI XX6

For high performance imaging, the G:BOX Chemi series systems provide the user with an extended range of applications covering fluorescence and chemiluminescence.

Walk Away Western Blot Imaging

Your lab’s imaging system shouldn’t control how you detect proteins on Western blots. Chemiluminescence is great if you want sensitive detection of picogram or femtogram amounts, while fluorescence lets you quantify and detect multiple different proteins on one blot. With a G:BOX Chemi XX6/XX9 you can have it all. Powered by Syngene’s revolutionary GeneSys software featuring hundreds of imaging protocols, you’re free to choose chemiluminescence and fluorescence reagents from any manufacturer, putting you in charge of how you detect your proteins.

Featuring an extended darkroom, you can choose between a 6 or 9 mega pixel, cooled, high quantum efficiency camera for unrivaled levels of sensitivity with minimal background interference.

HI-LED lighting options  cover the full spectrum of high intensity blue, green, red and infra-red resulting in faster exposure times and publication quality images. An edge lighting option can also be used for 2D gel capture including the use of DIGE gels.

The system is controlled by GeneSys application driven image capture software and comes complete with unlimited copies of GeneTools analysis software.

Features

Gel imaging for fluorescence and chemiluminescence

  • High quantum efficiency (QE) camera
    For unrivalled levels of sensitivity
  • Fast chemiluminescence detection
    Walk-away image capture without film
  • Motor driven lens and filter wheel
    Easy to use, fully automated set up
  • IR and RGB HI-LED lighting options
    Multiplex fluorescence and protein quantification
  • Stain-free imaging capability
    Capture images of TGX Stain-Free™ FastCast™ acrylamide gels and many more
  • Edge lighting option
    2D and multiplex in-gel fluorescence DIGE image capture
  • White, UV and blue lighting options
    Capture all types of gel and blot images with one system
  • Extended darkroom with motor driven stage
    Easily image large gels and blots
  • GeneSys application driven image capture software
    Contains extensive database of dyes and imaging protocols. All you need to know is the type of gel you’re using and GeneSys automatically selects the optimal lighting and filters to produce the perfect image
  • GeneTools analysis software (unlimited copies)
    Analyse data at your own computer

Specifications

Specifications

G:BOX Chemi XX6 G:BOX Chemi XX9
Image resolution (pixels m) 6 9.1
Effective resolution (pixels m) 18 27
A/D 16 bit 16 bit
Greyscales 65536 65536
Quantum efficiency @ 425nm 73% 73%
Cooling Peltier Peltier
Lens (motor driven) Motor driven f0.95 with
auto focus and stage zoom
Motor driven f0.95 with
auto focus and stage zoom
Filter wheel (7 position motor driven) Yes Yes
UV filter Yes Yes
Use with external PC Yes Yes
Darkroom
Extended with motor driven stage Yes Yes
Illumination
Epi LED white lights Yes Yes
Epi UV 302nm Optional Optional
Epi red LED module Optional Optional
Epi blue LED module Optional Optional
Epi green LED module Optional Optional
Epi red LED module M series for multiplexing Optional Optional
Epi green LED module M series for multiplexing Optional Optional
Epi blue LED module M series for multiplexing Optional Optional
Epi IR LED module Optional Optional
IR multiplexing kit (680-800nm) Optional Optional
HI-LED RGB Optional Optional
HI-LED RGBIR Optional Optional
HI-LED RIR Optional Optional
Visible light converter 33 x 31cm Optional Optional
White light pad for visible stains (20 x 14cm) Optional Optional
UltraBright LED blue light transilluminator 20 x 16cm Optional Optional
Edge lighting unit 26.5 x 20cm Optional Optional
UV transilluminators Optional Optional
Dimensions
Max image area (cm) 32.3 x 25.6 32.3 x 25.6
Min image area (cm) 15 x 11.8 15 x 11.8
W x H x D (cm) 57 x 99 x 55 57 x 99 x 55
Weight (kg) 45 45
Voltage 115v/240v 115v/240v
