Syngene G:Box F3|Gel Documentation System

Short Description

Versatile high resolution gel doc

An entry level system for imaging fluorescence and visible applications, the G:BOX F3 gel doc is the ideal solution for your laboratory.

Syngene is the most popular gel documentation system in New England.

If raw data, high sensitivity, image resolution, an affordable price, and great service are important factors in making your decision for a gel  imaging system, contact us or call (617)286-4632.

Versatile high resolution gel doc

An entry level system for imaging fluorescence and visible applications, the G:BOX F3 gel doc is the ideal solution for your laboratory.

Using your choice of dyes or stains, the G:BOX F3 automatically selects the right lighting and filters to detect close bands on both small and large gels. Choosing white light options for Coomassie Blue, UV and blue lighting options, ethidium bromide or SYBR® Safe gels, this system is the ultimate in gel doc flexibility.

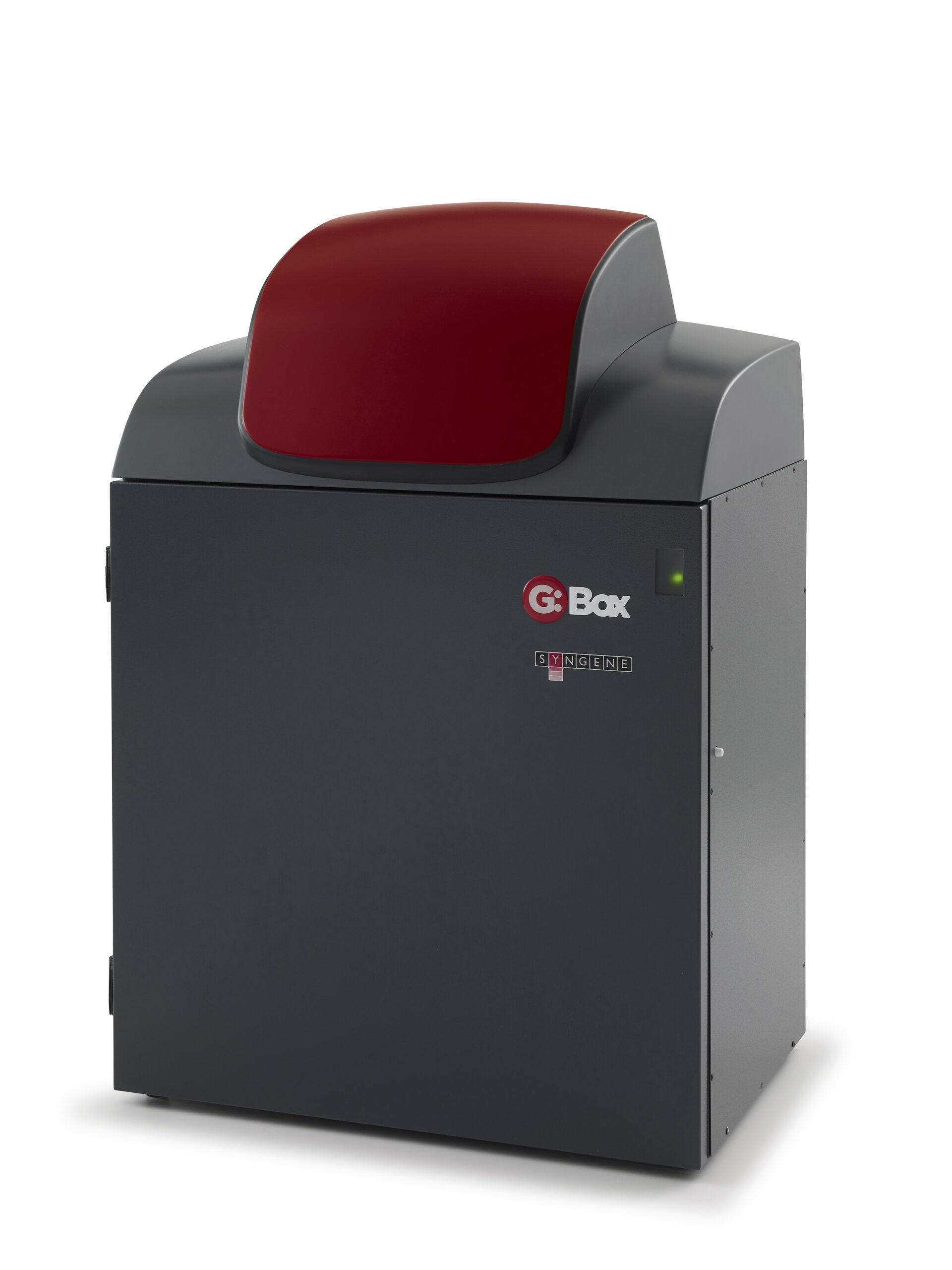

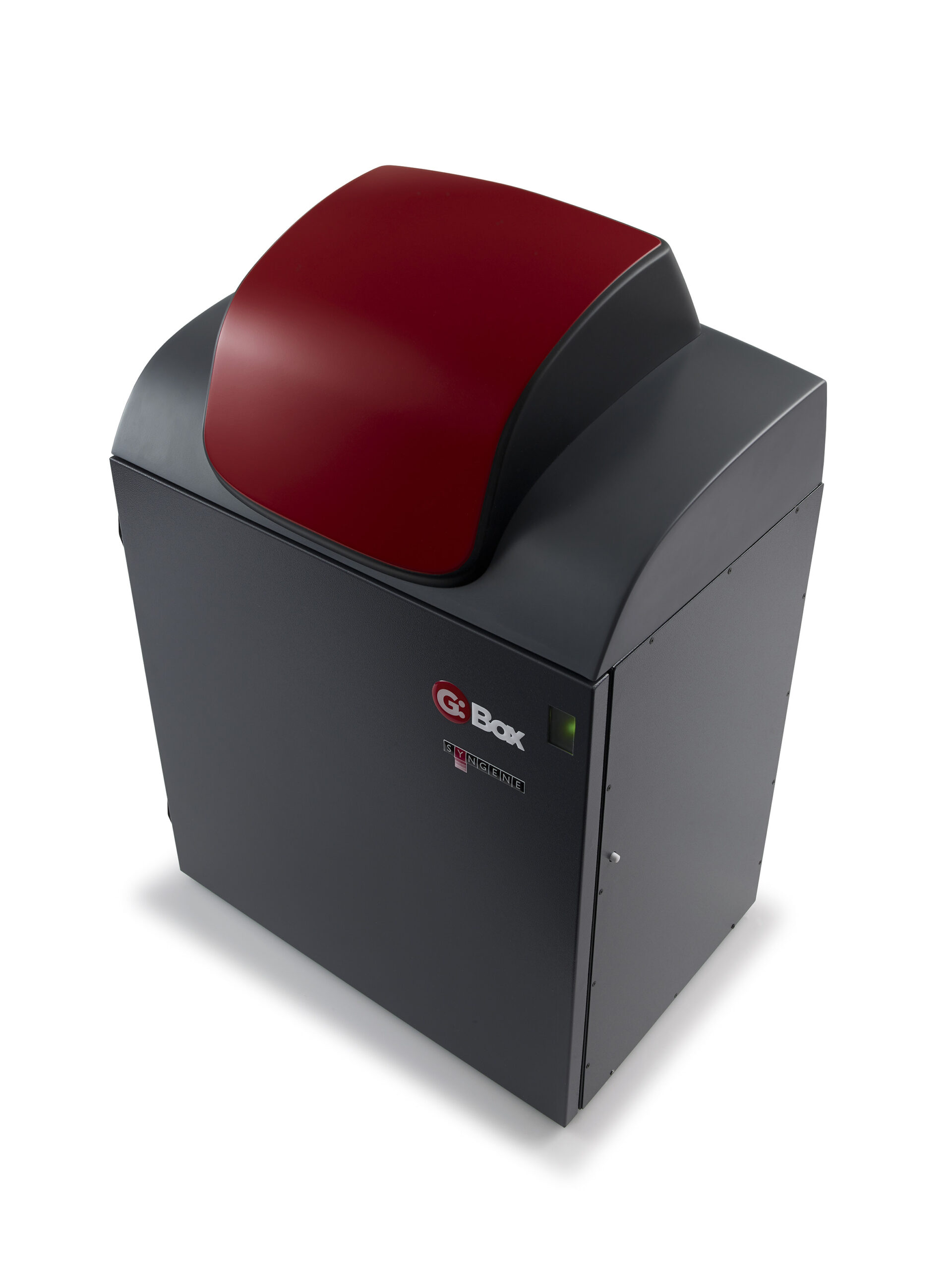

The stylish and modular designed G:BOX F3 gel doc system includes a high resolution 5m pixel camera which is capable of giving outstanding images with incredible spatial resolution as well as a motor driven zoom lens and a motor driven filter wheel as standard. G:BOX F3 also comes with a Lens Feedback option allowing you to optimise your image capture using user protocols.

The system is controlled by GeneSys application driven image capture software and comes complete with unlimited copies of GeneTools analysis software.

Features

Gel imaging for fluorescence and visible applications

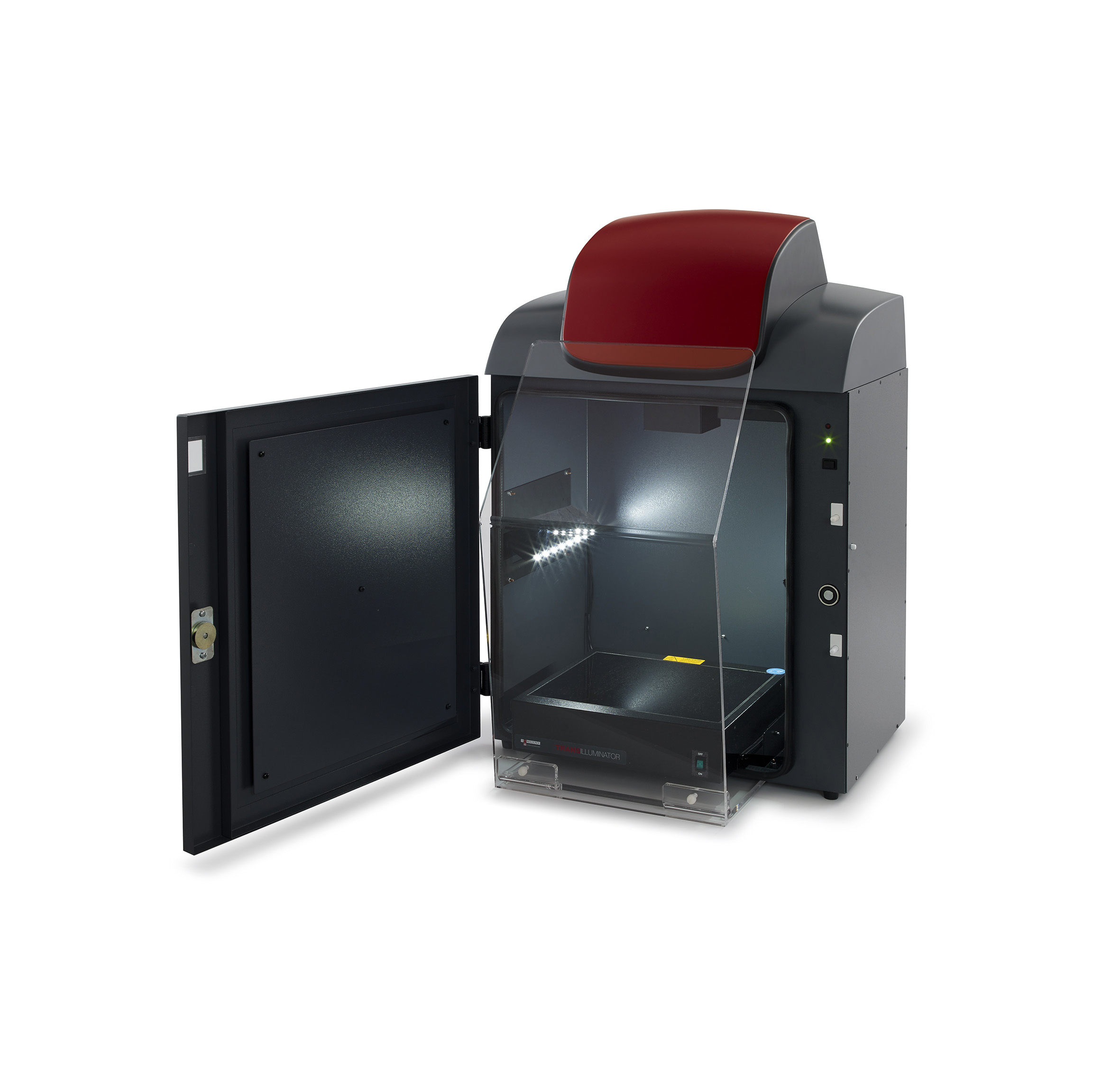

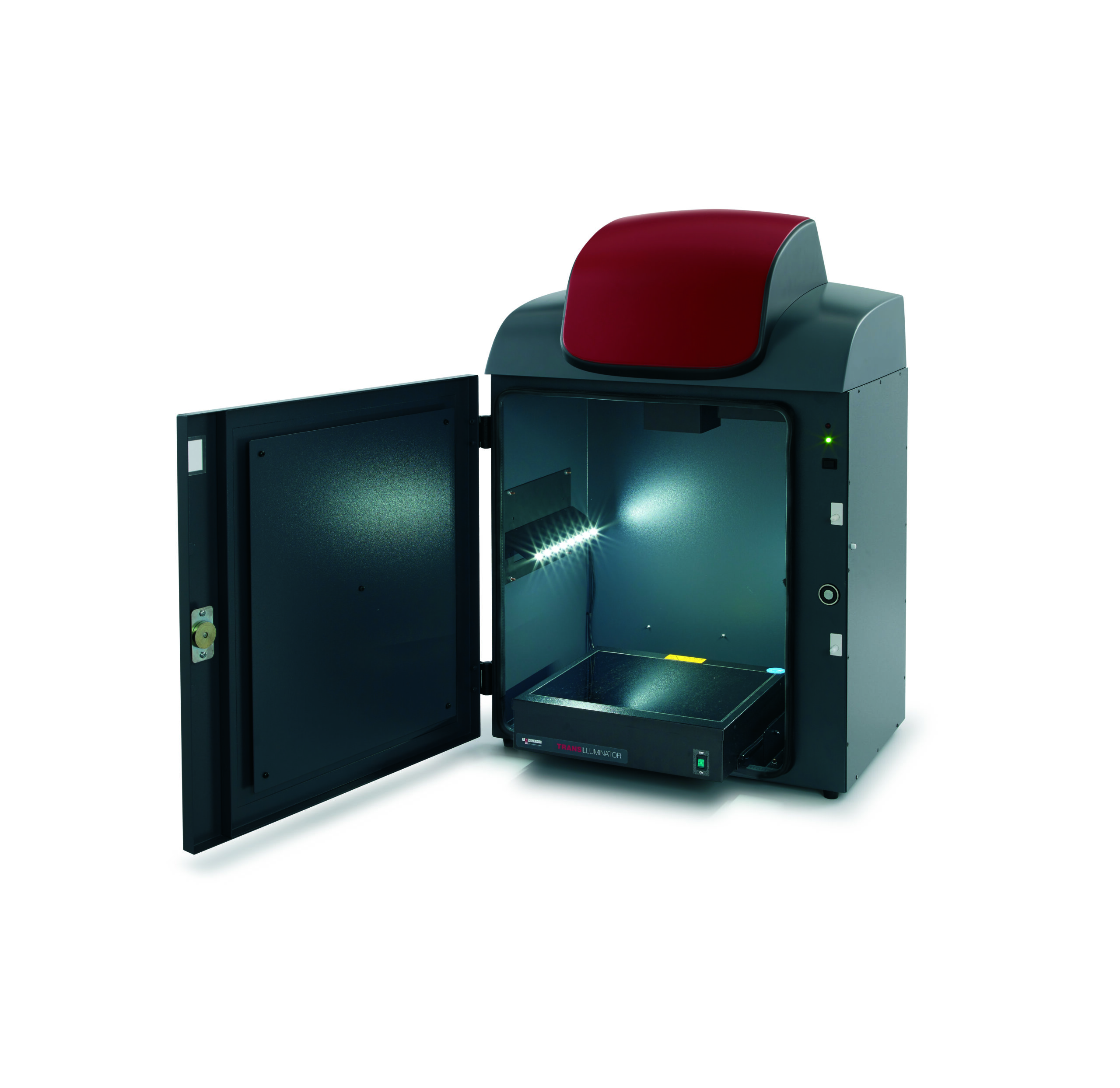

  • Spacious darkroom
    Image gels up to 32cm x 24cm
  • 5m pixel camera
    Resolves close bands and detects nanogram amounts
  • Motor driven zoom lens and filter wheel
    One click set up for easy image capture
  • Optional Lens Feedback available
    Optimise image capture by using user protocols
  • White UV and blue lighting options
    Flexibility to image fluorescent and visible stained gels
  • GeneSys application driven image capture software
    Contains extensive database of dyes and imaging protocols. All you need to know is the type of gel you’re using and GeneSys automatically selects the optimal lighting and filters to produce the perfect image
  • GeneTools analysis software (unlimited copies)
    Analyse data at your own computer

Specifications

G:BOX F3
Image resolution (pixels m) 5
Effective resolution (pixels m) 15.1
A/D 12/16 bit
Greyscales 65536
Quantum efficiency @ 425nm 52%
Cooling None
Lens (motor driven) Zoom f1.2.
Optional f1.2 with lens feedback
Filter wheel (7 position motor driven) Yes
UV filter Yes
Use with external PC Yes
Darkroom
Standard Yes
Illumination
Epi LED white lights Yes
Epi UV 302nm Optional
Visible light converter 33 x 31cm Optional
White light pad for visible stains (20 x 14cm) Optional
UltraBright LED blue light transilluminator 20 x 16cm Optional
UV transilluminators Optional
Dimensions
Max image area (cm) 32.5 x 24.1
Min image area (cm) 5.6 x 4.2
W x H x D (cm) 57 x 84 x 45
Weight (kg) 37
Voltage 115v/240v
