Syngene G:BOX Mini 6 or 9|Gel Documentation and Western Blot Imaging

Short Description

Compact fluorescent and chemi Western blot imaging system

Need to quantify multiple different fluorescent proteins on one blot and capture images of chemi blots, but your lab is limited on space? Then the G:BOX mini is just the compact imaging powerhouse you’ve been looking for. With stain-free, RGB and IR excitation options for Alexa Fluor® 488, 546, 647 and IR dyes, you’re just a click away from brilliant multiplex images from one single Western.

Syngene is the most popular gel documentation system in New England

If raw data, high sensitivity, image resolution, an affordable price, and great service are important factors in making your decision for a gel  imaging system, contact us or call (617)286-4632.

Compact fluorescent and chemi Western blot imaging system

Need to quantify multiple different fluorescent proteins on one blot and capture images of chemi blots, but your lab is limited on space? Then the G:BOX mini is just the compact imaging powerhouse you’ve been looking for. With stain-free, RGB and IR excitation options for Alexa Fluor® 488, 546, 647 and IR dyes, you’re just a click away from brilliant multiplex images from one single Western.

Using the G:BOX mini you’ll also get perfectly exposed images of your chemi labelled proteins without the bother of film. Simply place your blot in the darkroom, click on GeneSys capture software and your imager will do the rest with no fuss and no messy chemicals.

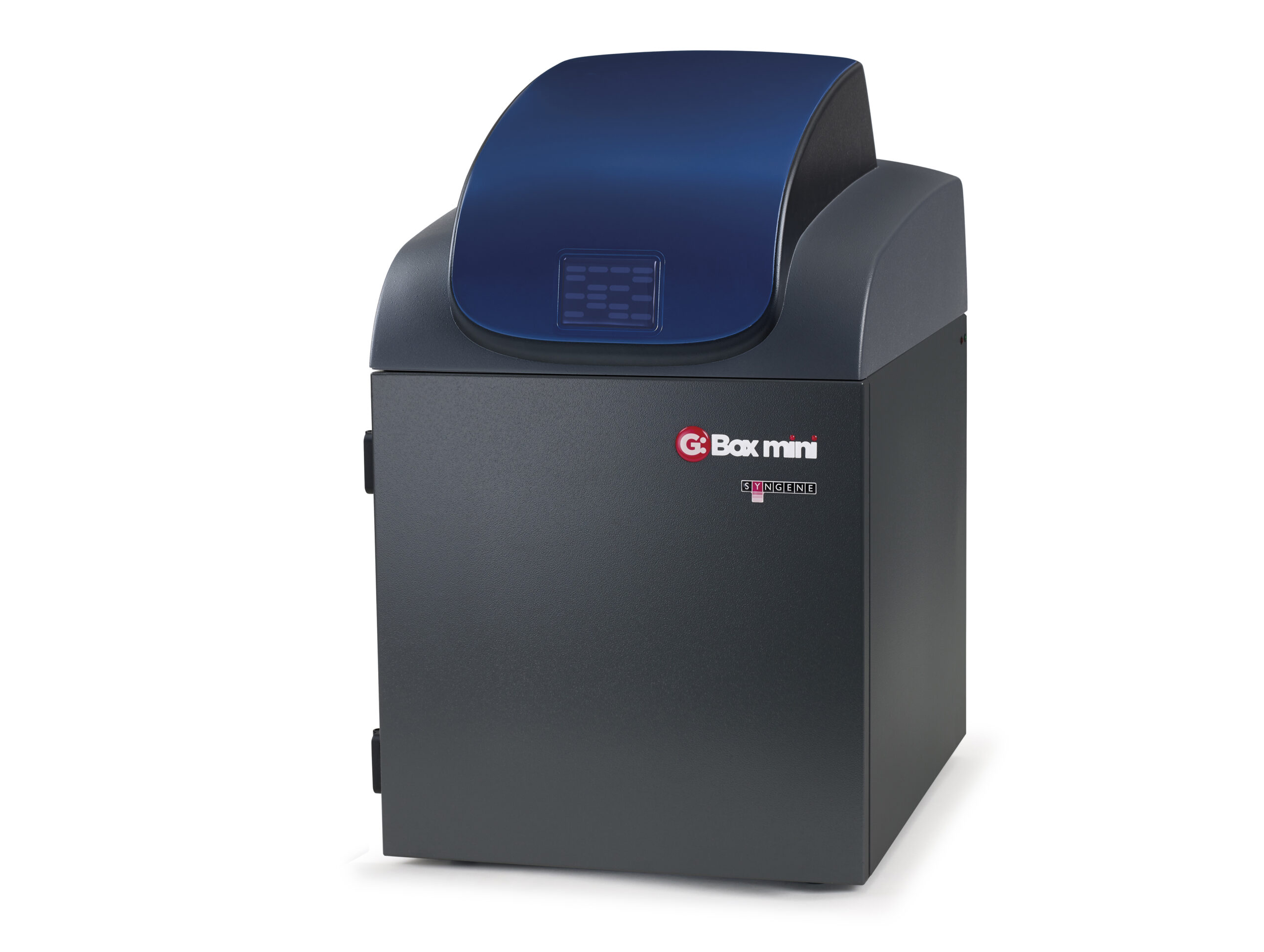

G:BOX mini is a compact, multi-application imaging system combining a unique motor driven stage and cooled high resolution 6 or 9 megapixel camera enabling you to generate accurate optical images, not just digitally enhanced ones. With a G:BOX mini you’ll see separate close chemi and fluorescent bands or spots even on complex gels and know they’re really part of your data.

HI-LED lighting options  cover the full spectrum of high intensity blue, green, red and infra-red resulting in faster exposure times and publication quality images.

The system is controlled by GeneSys application driven image capture software and comes complete with unlimited copies of GeneTools analysis software.

Feature

Compact fluorescent and chemi Western blot imaging system

  • Small footprint
    Leaves plenty of room on any lab bench
  • RGB and IR HI-LED lighting options
    Fast quantification of multiple fluorescent proteins without stripping and re-probing
  • Stain-free imaging capability
    Capture images of TGX Stain-Free™ FastCast™ acrylamide gels and many more
  • High quantum efficiency (QE) camera
    Detect picogram or femtogram amounts
  • Luxury lens (F/0.95 motor driven) with data feedback
    Captures the highest quality images
  • Automatic motor driven stage with automated focus
    For real, optical images
  • White, UV and blue lighting options
    Image all gels and blot types on one system

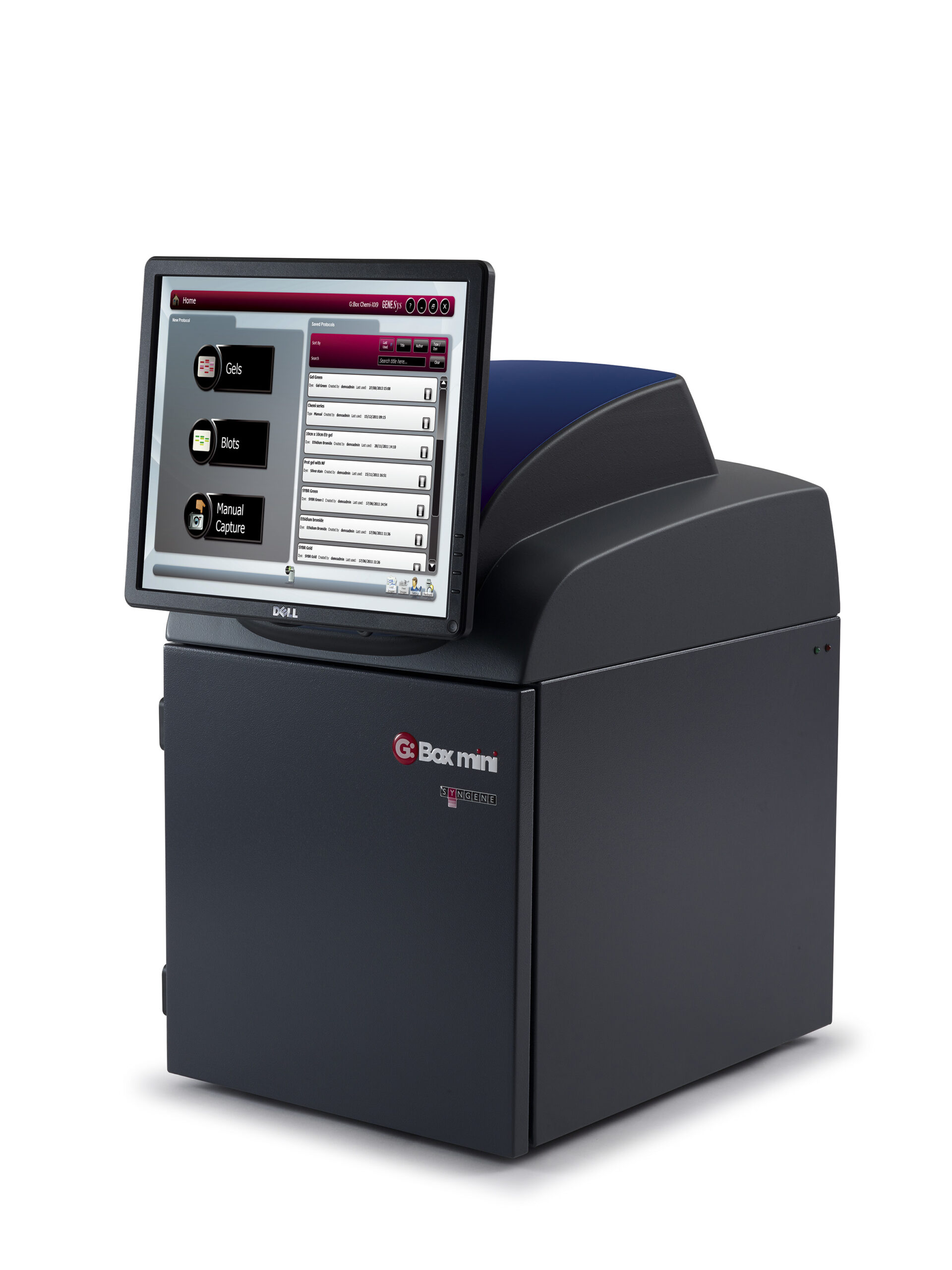

  • Cleverly designed screen mount option
    Easily and securely attach a monitor
  • GeneSys application driven image capture software
    Contains extensive database of dyes and imaging protocols. All you need to know is the type of gel you’re using and GeneSys automatically selects the optimal lighting and filters to produce the perfect image
  • GeneTools analysis software (unlimited copies)
    Analyse data at your own computer

Specifications

Detection with a difference

SYSTEM G:BOX mini 6 G:BOX mini 9
Image resolution (megapixels) 6 9.1
Effective resolution (megapixels) 18 27
A/D 16 bit 16 bit
Greyscale 65,536 65,536
Quantum efficiency (@425nm) 73% 73%
Lens (motor driven) F0.95 F0.95
Motor driven stage True optical imaging True optical imaging
Filter wheel (7 position motor driven) Yes Yes
UV filter Yes Yes
Use with external PC and printer (not included) Yes Yes
LIGHTING
Epi LED white lights Yes Yes
HI-LED (red, blue, green) Optional Optional
HI-LED (red, infrared) Optional Optional
HI-LED (red, blue, green, infrared) Optional Optional
Visible light converter Optional Optional
Blue converter screen Optional Optional

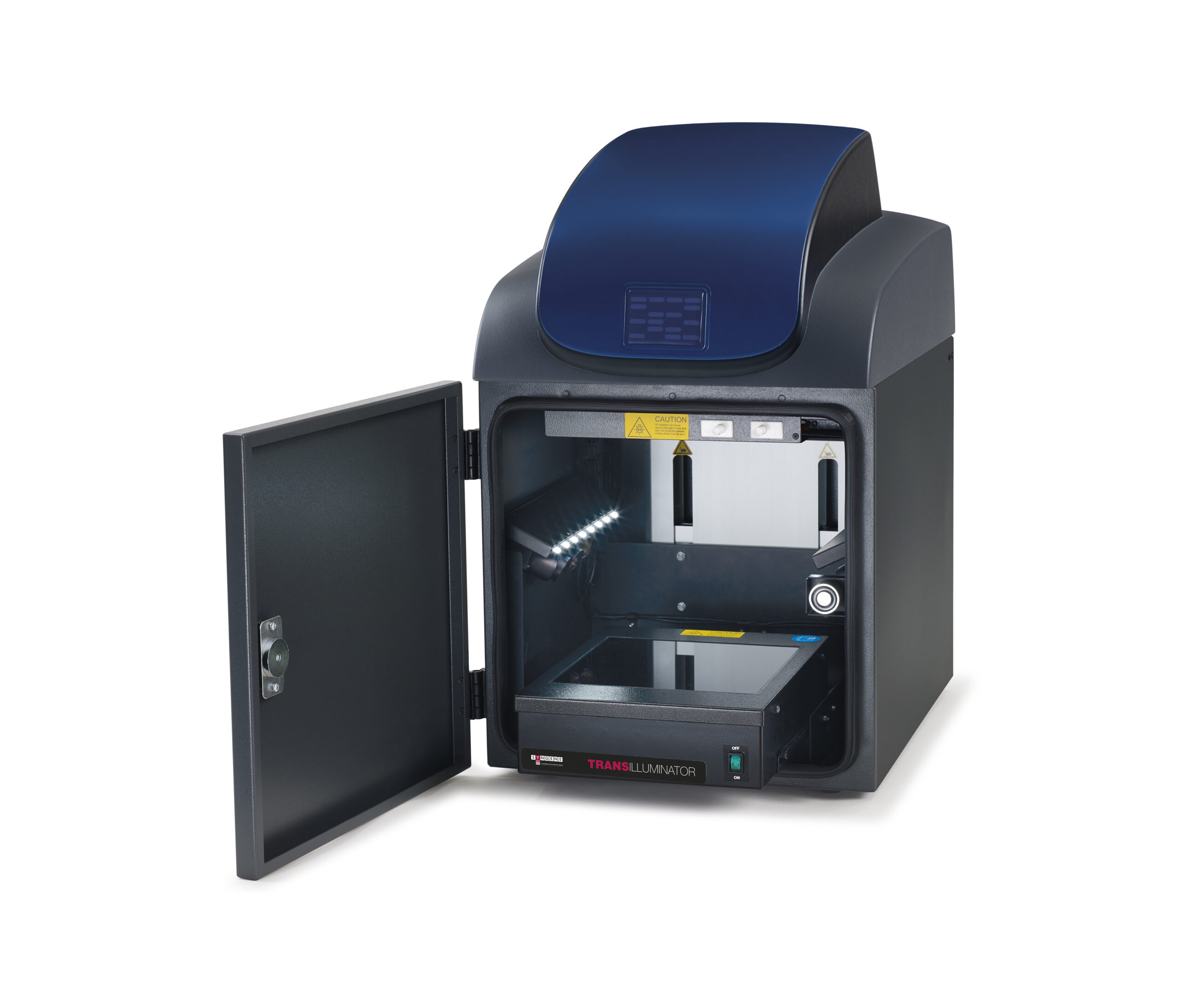

Slim slide-out UV transilluminator (20cm x 20cm) Optional – 254, 302, 365nm wavelengths Optional – 254, 302, 365nm wavelengths
UltraSlim Blue LED transilluminator
Gel size (cm)
Optional10 x 12 Optional
10 x 12
DIMENSIONS
Max image area (cm) 15 x 12 15 x 12
Min image area (cm) 10 x 8 10 x 8
W x H x D (cm) 40 x 64 x 52 40 x 64 x 52
Weight (kg) 40 40
Power input (V) 100-240 100-240
