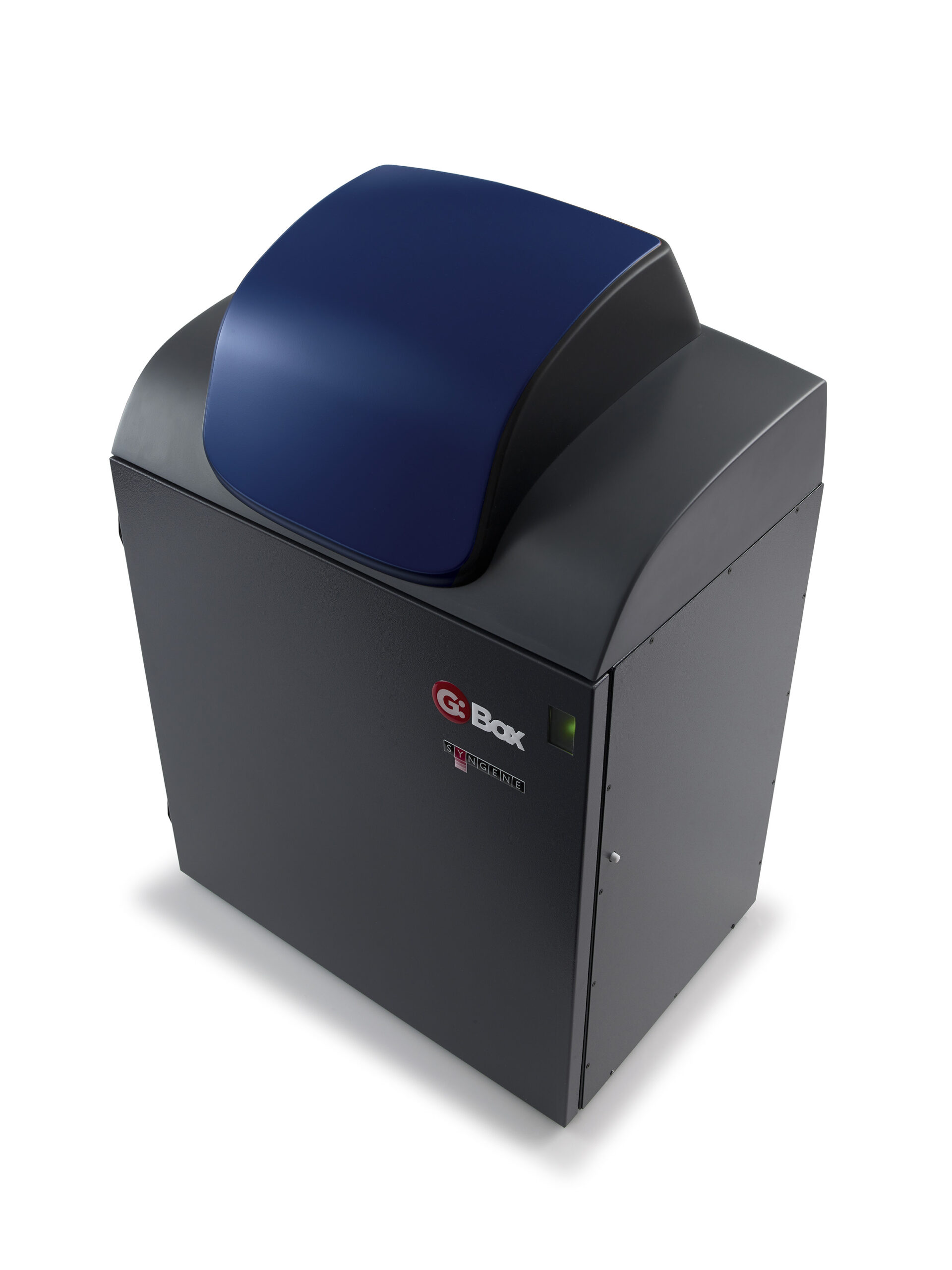

Syngene G:BOX Chemi XRQ|Gel Documentation and Western Blot Imaging

Short Description

Cost-efficient chemi imaging and gel doc

For a laboratory that needs hassle-free chemiluminescent detection, as well as routine gel documentation, using the G:BOX Chemi XRQ’s powerful GeneSys software to switch between applications is simplicity itself. Place your chemi blot in, and the system’s cooled camera captures images with a sensitivity equal to film or slide in your gels to generate quality pictures of your DNA and proteins anytime you want.

Syngene is the most popular gel documentation system in New England.

If raw data, high sensitivity, image resolution, an affordable price, and great service are important factors in making your decision for a gel imaging system, contact us or call (617)286-4632.

Cost-efficient chemi imaging and gel doc

For a laboratory that needs hassle-free chemiluminescent detection, as well as routine gel documentation, using the G:BOX Chemi XRQ’s powerful GeneSys software to switch between applications is simplicity itself. Place your chemi blot in, and the system’s cooled camera captures images with a sensitivity equal to film or slide in your gels to generate quality pictures of your DNA and proteins anytime you want.

Featuring a standard darkroom and a 4 million pixel image resolution, the G:BOX Chemi XRQ camera is cooled to provide a low signal to noise ratio with perfect background.

HI-LED lighting options  cover the full spectrum of high intensity blue, green, red and infra-red resulting in faster exposure times and publication quality images.

The G:BOX Chemi XRQ is a cost-effective alternative to laser based technology offering a faster workflow for imaging complex multiplex fluorescent gels and blots.

The system is controlled by GeneSys application driven image capture software and comes complete with unlimited copies of GeneTools analysis software.

Features

Gel imaging for fluorescence and chemiluminescence

  • High quantum efficiency (QE) camera
    Picogram detection
  • Multiplex imaging of up to 5 different channels with UV, blue and RGB HI-LED lighting options
    Easily switch between blot or gel imaging
  • Stain-free imaging capability
    Capture images of TGX Stain-Free™ FastCast™ acrylamide gels and many more
  • Auto-exposure
    Perfectly exposed chemi images without film
  • Excellent signal to noise ratio
    No annoying backgrounds on your blots
  • Protocol driven image capture
    No camera expertise needed for great results
  • Motor driven lens and filter wheel
    Simple, automated set up
  • Reproducible and quantifiable data
    Accurate results time after time
  • CFR21 Part 11 compliant
    Fully traceable results suitable for regulatory audits
  • GeneSys application driven image capture software
    Contains extensive database of dyes and imaging protocols. All you need to know is the type of gel you’re using and GeneSys automatically selects the optimal lighting and filters to produce the perfect image
  • GeneTools analysis software (unlimited copies)
    Analyse data at your own computer

Specifications

G:BOX Chemi XRQ
Image resolution (pixels m) 4
Effective resolution (pixels m) 16
A/D 16 bit
Greyscales 65536
Quantum efficiency @ 425nm 73%
Cooling Peltier
Lens (motor driven) Motor driven zoom 1.2
Filter wheel (7 position motor driven) Yes
UV filter Yes
Use with external PC Yes
Darkroom
Standard Yes
Illumination
Epi LED white lights Yes
Epi UV 302nm Optional
Epi red LED module Optional
Epi blue LED module Optional
Epi green LED module Optional
Epi red LED module M series for multiplexing Optional
Epi green LED module M series for multiplexing Optional
Epi blue LED module M series for multiplexing Optional
Epi IR LED module Optional
IR multiplexing kit (680-800nm) Optional
HI-LED RGB Optional
HI-LED RGBIR Optional
HI-LED RIR Optional
Visible light converter 33 x 31cm Optional
White light pad for visible stains (20 x 14cm) Optional
UltraBright LED blue light transilluminator 20 x 16cm Optional
UV transilluminators Optional
Dimensions
Max image area (cm) 30.5 x 22.7
Min image area (cm) 5.1 x 3.8
W x H x D (cm) 57 x 84 x 45
Weight (kg) 37
Voltage 115v/240v
