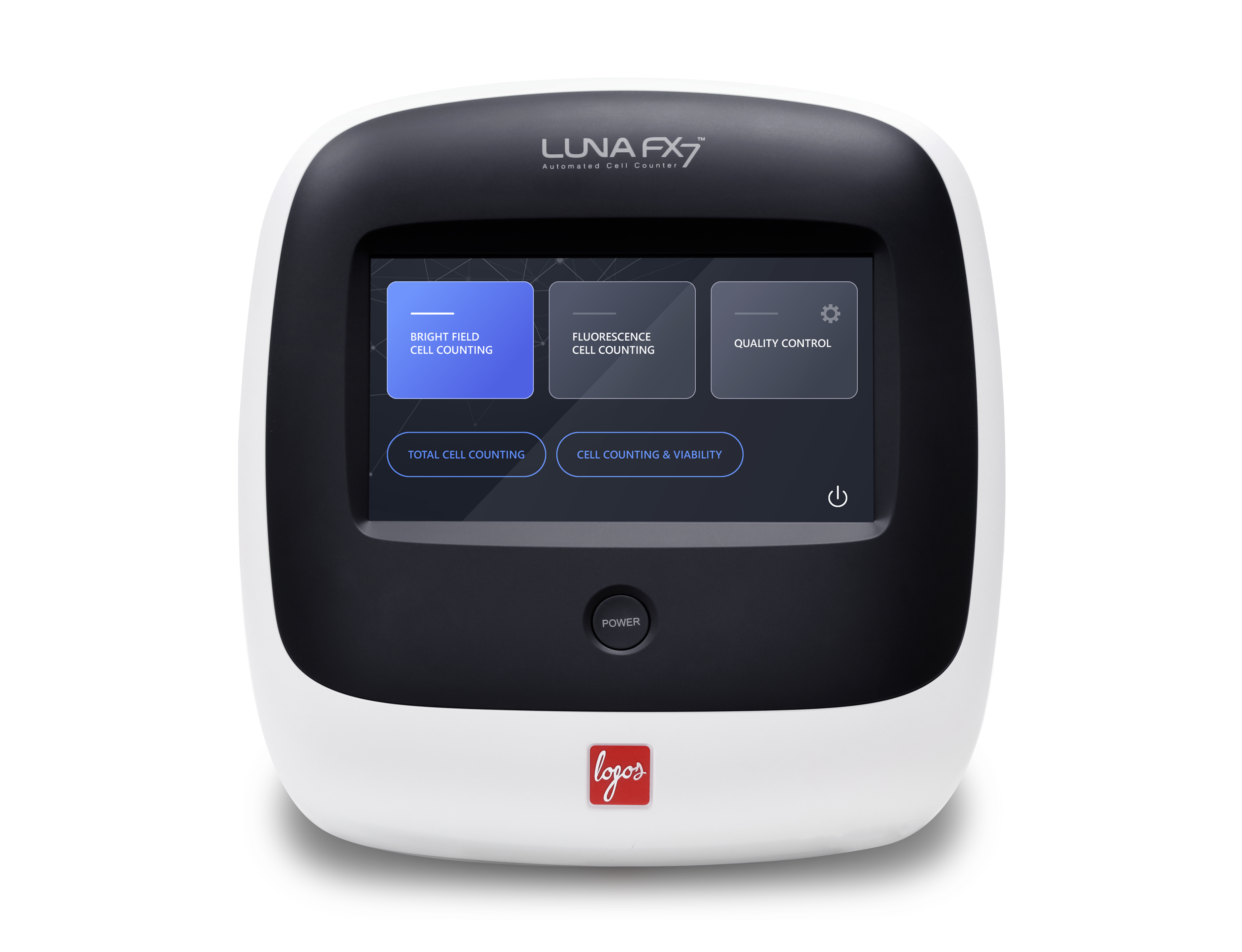

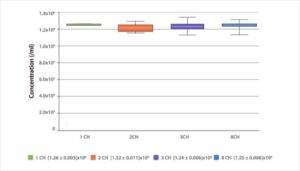

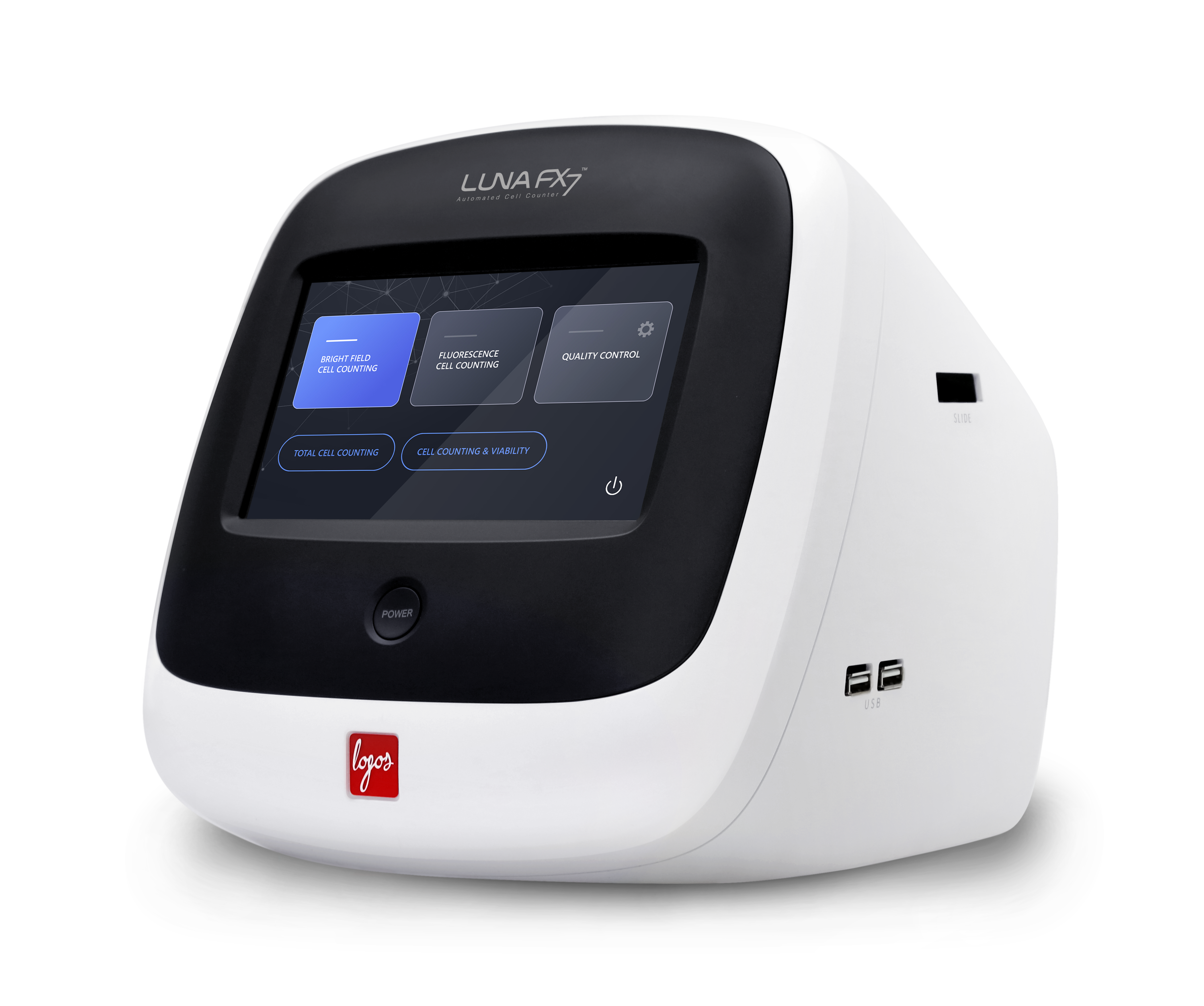

The LUNA‑FX7™ Automated Cell Counter builds on Logos Biosystems’ award‑winning cell‑counter lineage to deliver unmatched precision and efficiency. It has an intuitive touchscreen interface and fast autofocus. The LUNA-FX7 is easy to operate and produces counts that agree closely with manual hemocytometer results. Its 1‑, 3‑ and 8‑chamber slide options allow you to process up to eight samples simultaneously, streamlining workflows for PBMC, CAR‑T and routine cell‑culture applications. It is the perfect high‑throughput fluorescent and bright‑field automated cell counter. The FX7’s large, up to 5.1 µL counting volume, sophisticated de‑clustering algorithms and dual brightfield/fluorescence optics reduce error and variability compared with standard counters. Built‑in quality‑control software, validation slides and 21 CFR Part 11 compliance provide traceable, audit‑ready data. These features, combined with high‑capacity storage and flexible export options, boost throughput and confidence in results—making the LUNA‑FX7 a dependable choice for labs seeking reproducible, high‑throughput cell counting.

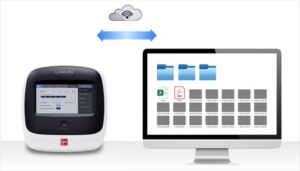

Not only the simple and efficient operation via intuitive touchscreen controls, brightfield and dual fluorescent detection options, multiple counting modes, and customizable protocols allow you to easily optimize for your cell and sample type. Counting results may be exported as a CSV summary or a comprehensive PDF report with raw and tagged images. With an internal 250GB hard drive, no additional computer is needed and data may be exported via Wi-Fi, Ethernet, or USB flash drive.

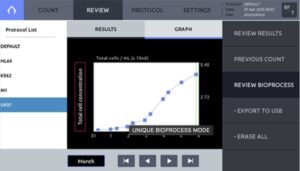

A new bioprocess feature allows you to monitor, record, and analyze your different bioprocessing activities individually. Growth rates and trend charts may be produced that enable you to trace production and accurately forecast timelines.

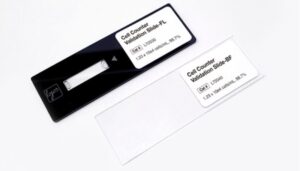

The LUNA-FX7™ validation slides and QC software allow you to be confident and trust in your data. The brightfield and fluorescent validation slides offer exact cell concentration and viability while the QC features provide the ability to store, monitor, and analyze quality control data.
| LUNA-FX7™ Automated Cell Counter (L70001) | LUNA-FX7™ Automated Cell Counter Bioprocess (L70002) | |
|---|---|---|
| Onboard storage | 250 GB | 1 TB |
| Software | Standard software | Bioprocess software |
| Cell concentration range | Detectable: 1 x 10⁴ – 5 x 10⁷ cells/mL, optimal: 5 x 10⁴ – 1 x 10⁷ cells/mL | |
| Cell diameter range | Detectable: 1-90 µm, optimal: 3-60 µm | |
| Optics | Brightfield, dual fluorescence | |
| Green fluorescence | Ex : 470±20 nm, Em : 530±25 nm | |
| Red fluorescence | Ex : 530±20 nm, Em : 620±30 nm | |
| Focusing | Auto focus / Manual focus | |
| Display | 7” Capacitive touch screen LCD | |
| Data format | PDF, CSV, TIFF | |

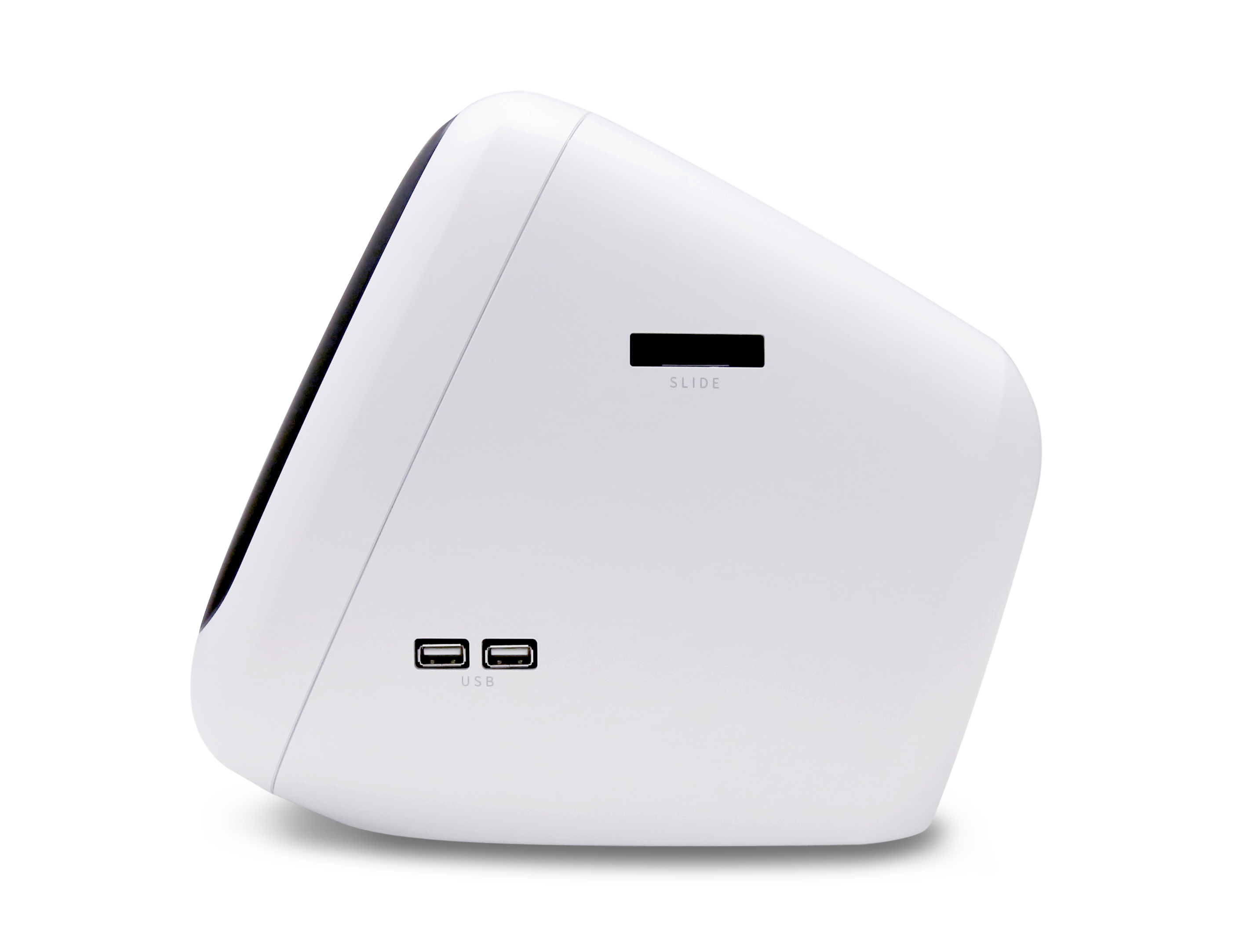

| Data export | USB, WiFi, Ethernet | |
| Printer | External printer (optional) | |
| 21 CFR Part 11 | CountWire™ software (optional) | |
| User management | CountWire™ software (optional) | |
| IQ/OQ | Yes (optional) | Yes |
| Dimensions | 245 x 280 x 240 mm | |
| Weight | 5.0 kg | |
