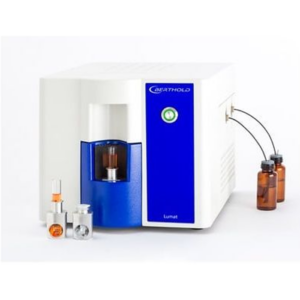

Lumat LB 9510 Luminometer for Tubes | Tube Luminometer

Short Description

The Lumat LB 9510 offers the functionality, versatility and superior performance you can expect from a luminometer developed by Berthold Technologies. The optimized optical system provides true single photon counting combined with a low-noise photomultiplier tube for up to 6 decades of linear dynamic range. The new Lumat has all the key features needed for today’s research applications.

ULTRASENSITIVE. RELIABLE. COMFORTABLE.

The Lumat LB 9510 offers the functionality, versatility and superior performance you can expect from a luminometer developed by Berthold Technologies. The optimized optical system provides true single photon counting combined with a low-noise photomultiplier tube for up to 6 decades of linear dynamic range. The new Lumat has all the key features needed for today’s research applications.

Ready to meet your application needs

The new Lumat is a tube luminometer that uses state-of-the-art technology based on more than 40 years of experience engineering and designing luminometers. The luminometer supports all basic luminescence technologies including:

  • Flash-type Luminescence
  • Glow-type Luminescence
  • Bio-Luminescence
  • Chemi-Luminescence

Luminescence detection at its best

Thanks to a stringent selection of photomultipliers working in photon counting mode and more than 40 years of experience building luminometers, the new Lumat offers excellent luminescence sensitivity: <1 zmol firefly luciferase and <1 amol ATP/tube (high sensitivity model) can be reliably detected.

JET injectors – highest accuracy, speed and cell-friendliness

The Lumat can be equipped with up to 2 JET injectors with variable volumes. The ultra-fast injection speed of JET-injectors eliminates any delay between injection and measurement and is critical to measure fast reactions, e.g. for flash luminescence measurements.

Berthold Technologies’ JET injectors use Teflon bellows for accurate and fast injections and guarantee most efficient mixing as well as extreme longevity.

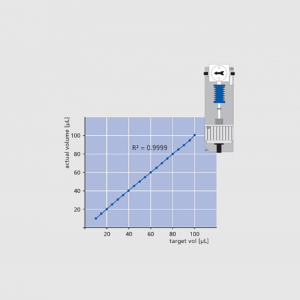

  • Accurate pipetting of small volumina: regardless of whether you want to inject large or small volumes, JET injectors ensure high accuracy and more than 98% accuracy over the entire volume range
  • Low maintenance costs: frictionless operation for extended lifetime
  • Cell-friendly performance: cell-friendly materials and negligible shear forces enable worry-free injection of cell suspensions, e.g. in Aequorin-based calcium assays

Convenient sample switching mechanism

The measurement of individual samples one after the other can be time-consuming. The Lumat has a turret mechanism that makes this job easier and increases your throughput. Thanks to its motor-driven revolving magazine mechanism based on a rotating chamber for two tubes (one for measuring and one for loading and unloading), so you can prepare and insert the next sample while the previous one is still measuring.

Powerful software

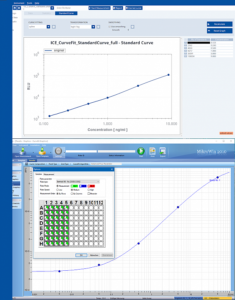

LightCompass® is a flexible software enabling easy data acquisition, analysis and reporting using Berthold Technologies’ instruments. It has been optimized for different microplate and tube formats. LightCompass® features all the functions you can expect from an advanced scientific software, such as flexible creation of measurement protocols, curve fitting, qualitative analysis and compliance with FDA 21 CFR Part 11.
