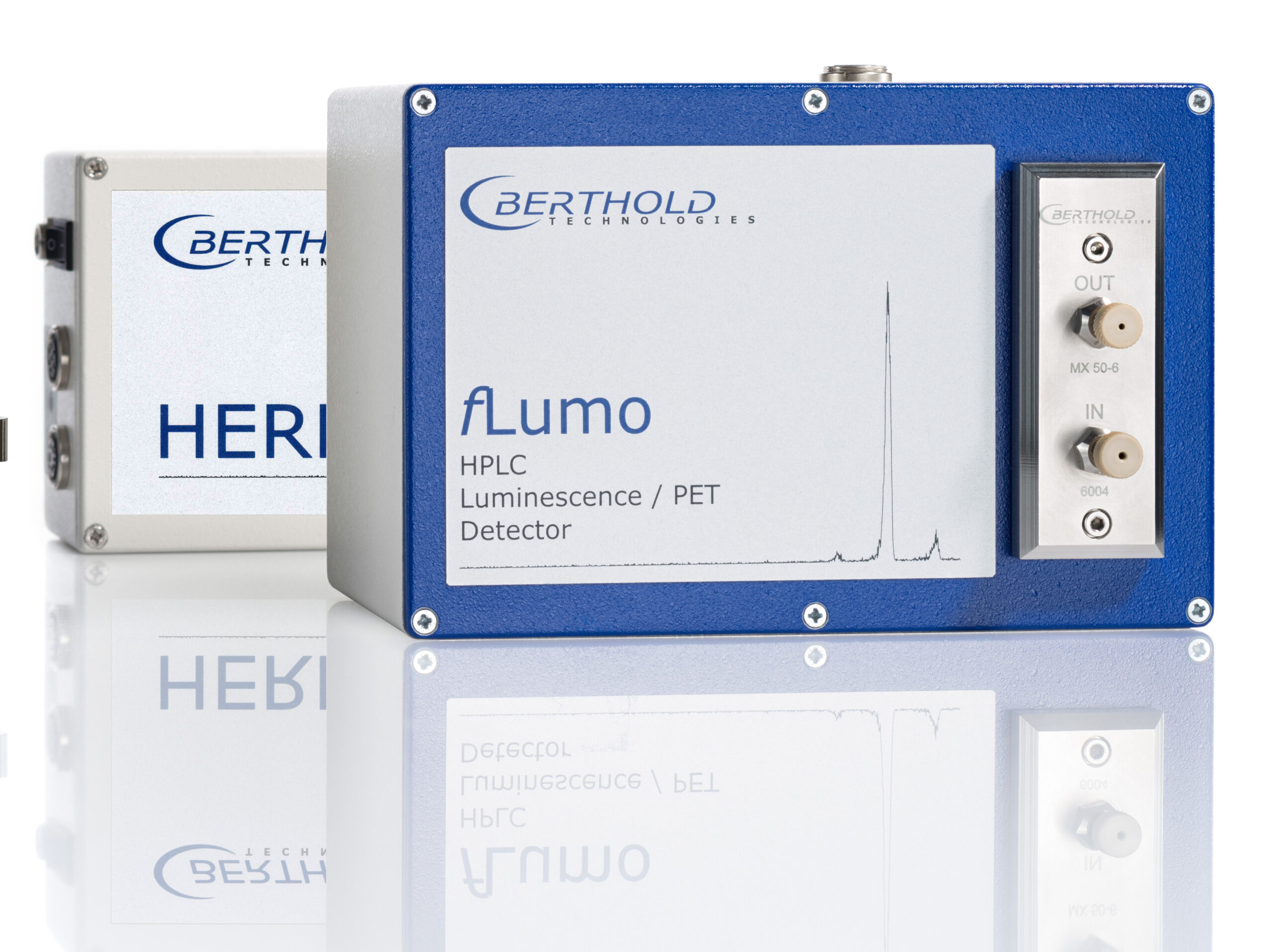

HERM LB500 with fLumo detector for gamma and high energy beta isotopes
The HERM is a dedicated radio HPLC monitor which can be connected to different detectors providing flexibility, reproducibility and sensitivity. The HERM with fLumo Chemiluminescence detector for HPLC systems uses a highly sensitive head-on photon counting detector with low background which is perfect for PET quality control, among other applications. Different measuring cells can be used to adapt for flow rates, activities and isotopes. For PET and direct luminescence, the HERM with Nal detector is available.
Simple integration into every HPLC system
The HERM makes integration into any existing HPLC system very easy. The PC connection can be established instantly via the USB port or by using the analog 0-1 V output. Its compact design makes it easy to fit in to a hot cell.
Highly sensitive luminescence monitoring
In the fLumo detector the low noise head-on PMT has been designed to face the sample coil directly. The result is a high sensitivity detector for even the faintest traces of chemiluminescence signals.
Background-free Gamma and PET monitoring
The use of specific measuring cells simplifies the measurement of high activity PET isotopes even in high background laboratories.
A bulky and heavy lead shielding is not required as the system is insensitive to 511 keV gamma. Available cells include:
Dual operation mode
The HERM system can be installed in multiple distinct configurations, providing more flexibility and convenience. The comfortable stand-alone configuration provides an analog signal which can be easily integrated into an existing HPLC system. The system is equipped with a flash memory and a powerful CPU. Alternatively, the system can be installed in the PC-controlled configuration via a USB connection for digital data acquisition.
Easy-to-use software for maximum productivity
The HERM Controller is the software interface to the instrument; it controls all functions and collects the data. The RadioStar software combines the ability to run sophisticated measurements with a user-friendly interface. A Chromeleon™ driver is available, Chromeleon™ is known as a very versatile chromatography software package supporting many different hardware solutions. The driver is fully certified and digitally signed by Thermo Scientific™ and runs with versions 6.x and 7.x.
Specifications:
Detection unit: Low noise photon counting 1 inch PMT
Interface: USB port (mini USB connector)
Inputs: Start signal (contact closure)
Outputs: TTL signal output (raw data), analog signal 0-1 V with 16-bit resolution, 2 programmable relay outputs
Software: The following options are available: 1. External control and evaluation via RadioStar software or 2. External control and evaluation via Chromeleon™ driver.
Power Supply: 6 V DC (via wide range mains adapter)
Dimensions (W x D x H): Electronics: 210 x 60 x 120 mm, fLumo detector: 225 x 150 x 130 mm
Weight: Electronics: 1 kg, fLumo detector: 4 kg
