Gel Electrophoresis
UltraBright UV (Part number: NEB-MLB-21) UV transilluminator is the perfect complement to your gel electrophoresis apparatus system!
The UltraBright UV carries a one-year warranty. Free shipping to anywhere in the USA.
UV transilluminators are a useful and necessary tool for the molecular biology lab. A gels that has been run on a electrophoresis system or apparatus and has been stained with a fluorescent dye such as Ethidium Bromide, SYBR Safe, SYBR Green, Gel Green, etc. will need to be placed on a UV transilluminator or blue light transilluminator for visualization and band cutting.
We are proud to offer the Maestrogen UV transilluminators, which represent the a great value and price for the life science researcher. All UltraBright UV transilluminators carry a two year warranty. The UltraBright UV transilluminators are equipped with a new-design variable position UV blocking cover, adjustable, to different angles for access to the work surface.
Key Features
- Uniform lighting design/Ultra high contrast
- UltraSafe UV blocking cover: block 99.99% UV transmittance
- Strong frame and stylish (no breakage of UV shield)
- Fast turn on speeds for UV lamps
- Dual UV wavelengths: 302nm/365nm
- Adjustable intensity: from 100% down to 50%
Product Specifications
- Dimensions (cm): 28D x 34W x 8H
- Viewing surface (cm): 21D x 26W
- Wavelength (nm): 302 & 365
- UV tubes: 11 x 8W
- UV blocking cover: Aluminum alloy frame
- Power: 100-240V, 50-60Hz
- Weight (Kg): 4.3
FREE SHIPPING!
UltraBright UV MB-21 UV transilluminator is the perfect complement to your gel electrophoresis apparatus system!
UV transilluminators are a useful and necessary tool for the molecular biology lab. A gels that has been run on a electrophoresis system or apparatus and has been stained with a fluorescent dye such as Ethidium Bromide, SYBR Safe, SYBR Green, Gel Green, etc. will need to be placed on a UV transilluminator or blue light transilluminator for visualization and band cutting.
We are proud to offer the Maestrogen UV transilluminators, which represent the a great value and price for the life science researcher. All UltraBright UV transilluminators carry a one year warranty. The UltraBright UV transilluminators are equipped with a new-design variable position UV blocking cover, adjustable, to different angles for access to the work surface.
Key Features
- Uniform lighting design/Ultra high contrast
- UltraSafe UV blocking cover: block 99.99% UV transmittance
- Strong frame and stylish (no breakage of UV shield)
- Fast turn on speeds for UV lamps
- Adjustable intensity: from 100% down to 50%
Product Specifications
- Dimensions(cm): 28D x 34W x 8H
- Viewing surface(cm): 21D x 26W
- Wavelength(nm): 302
- UV tubes: 6 x 8W
- UV blocking cover: Aluminum alloy frame
- Power: 100-240V, 50-60Hz
- Weight (Kg): 4.3
FREE SHIPPING!

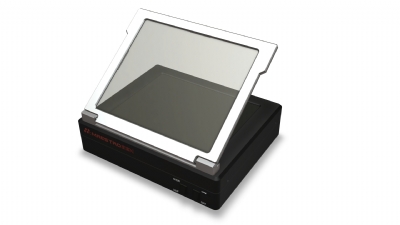

UltraBright UV MB-20 UV transilluminators are the perfect complement to your gel electrophoresis apparatus system!
UV transilluminators are a useful and necessary tool for the molecular biology lab. A gels that has been run on a electrophoresis system or apparatus and has been stained with a fluorescent dye such as Ethidium Bromide, SYBR Safe, SYBR Green, Gel Green, etc. will need to be placed on a UV transilluminator or blue light transilluminator for visualization and band cutting.
We are proud to offer the Maestrogen UV transilluminators, which represent the a great value and price for the life science researcher. All UltraBright UV transilluminators carry a two year warranty. The UltraBright UV transilluminators are equipped with a new-design variable position UV blocking cover, adjustable, to different angles for access to the work surface.
Key Features
- Uniform lighting design
- UltraSafe UV blocking cover: block 99.99% UV transmittance
- UV wavelength: 302nm
- Adjustable intensity: from 100% down to 50%
Product Specifications
- Dimensions(cm): 28D x 34W x 8H
- Viewing surface(cm): 20D x 20W
- Wavelength(nm): 302
- UV tubes: 6 x 8W
- UV blocking cover: Aluminum alloy frame
- Power: 100-240V, 50-60Hz
- Weight (Kg): 4.3
FREE SHIPPING!
UltraBright UV MLB-16 UV transilluminator is the perfect complement to your gel electrophoresis apparatus system!
UV transilluminators are a useful and necessary tool for the molecular biology lab. A gels that has been run on a electrophoresis system or apparatus and has been stained with a fluorescent dye such as Ethidium Bromide, SYBR Safe, SYBR Green, Gel Green, etc. will need to be placed on a UV transilluminator or blue light transilluminator for visualization and band cutting.
We are proud to offer the Maestrogen UV transilluminators, which represent the a great value and price for the life science researcher. All UltraBright UV transilluminators carry a one year warranty. The UltraBright UV transilluminators are equipped with a new-design variable position UV blocking cover, adjustable, to different angles for access to the work surface.
Key Features
- Uniform lighting design/Ultra high contrast
- UltraSafe UV blocking cover: block 99.99% UV transmittance
- Strong frame and stylish (no breakage of UV shield)
- Fast turn on speeds for UV lamps
- Dual UV wavelengths: 302nm/365nm
- Adjustable intensity: from 100% down to 50%
Product Specifications
- Dimensions (cm): 28D x 34W x 8H
- Viewing surface (cm): 16D x 20W
- Wavelength (nm): 302 & 365
- UV tubes: 9 x 8W
- UV blocking cover: Aluminum alloy frame
- Power: 100-240V, 50-60Hz
- Weight (Kg): 4.3
FREE SHIPPING!
UltraBright UV MB-16 UV transilluminators are the perfect complement to your gel electrophoresis apparatus system!
UV transilluminators are a useful and necessary tool for the molecular biology lab. A gels that has been run on a electrophoresis system or apparatus and has been stained with a fluorescent dye such as Ethidium Bromide, SYBR Safe, SYBR Green, Gel Green, etc. will need to be placed on a UV transilluminator or blue light transilluminator for visualization and band cutting.
We are proud to offer the Maestrogen UV transilluminators, which represent the a great value and price for the life science researcher. All UltraBright UV transilluminators carry a one year warranty. The UltraBright UV transilluminators are equipped with a new-design variable position UV blocking cover, adjustable, to different angles for access to the work surface.
Key Features
- Uniform lighting design
- UltraSafe UV blocking cover: block 99.99% UV transmittance
- UV wavelength: 302nm
- Adjustable intensity: from 100% down to 50%
Product Specifications
- Dimensions(cm): 28D x 34W x 8H
- Viewing surface(cm): 16D x 20W
- Wavelength(nm): 302
- UV tubes: 6 x 8W
- UV blocking cover: Aluminum alloy frame
- Power: 100-240V, 50-60Hz
- Weight (Kg): 4.3
Galileo Reflection™ 1010 Dual-Gel Vertical Electrophoresis Unit
by Galileo bioscience
Run either one or two gels simultaneously on these versatile separation systems. The 10x10cm size of the system also accomodates most pre-cast gels.
Complete double sided vertical system for running one or two gels, in a 10 x 10 cm format. Unique casting bases allows both casting and running of gels without unclamping from the upper buffer chamber, providing for safer and more convenient gel handling. In addition the 1010 device will accommodate most precast gel cassettes on the market.
Water cooling feature is included for protocols that require it. Connections are easily made by attaching standard tubing over the 3/8″ barbed in/out ports provided on the device. Water may be provided by tap or other temperature controlled water source. Optional alumina backer plates may be used to facilitate cooling efficiency and uniformity, and are available in the accessories list below.
System Features
The GalileoReflection™ 85-1010 complete system includes these features:
- Heavy duty upper buffer chamber with cooling port connections.
- Lower buffer chamber.
- Interlock safety lid with attached leads.
- Casting base.
- Two-pack each of plain & notched glass plates.
- One acrylic blocker plate (used when running only one gel).
- Ttwo 10-well, 0.8mm thick combs
- Four 0.8mm thick side spacers.
System accessories
Choose amoung these accessories to customize each system for your specific needs.
- Alumina cooling plate. For use with cooling systems. This plate can be sandwiched between the gel and the inner buffer chamber to improve overall temperature uniformity.
- Casting base. For quick, efficient and leak-proof casting.
- Multiple gradient caster.
View the Galileo Bioscience electrophoresis and blotting system catalog
Galileo Reflection™ 2020 Dual-Gel Vertical Electrophoresis Unit
by Galileo bioscience
Run either one or two extra wide long-run gels simultaneously on these versatile separation systems.
The 2020 unit is designed to provide the researcher with both high cample capacity and increased run length. Runs either one or two larger format 20cm wide x 20cm tall gels. Unique casting base allows both casting and running of the gel without unclamping from the upper buffer chamber, providing for safer and more convenient gel handling.
Water cooling feature is included for protocols that require it. Connections are easily made by attaching standard tubing over the 3/8″ barbed in/out ports provided on the device. Water may be provided by tap or other temperature controlled water source. Optional alumina backer plates may be used to facilitate cooling efficiency and uniformity, and is shown in the accessories list below.
System Features
The Galileo Reflection™ 85-2020 complete system includes these features:
- Heavy duty upper buffer chamber with cooling port connections.
- Lower buffer chamber.
- Interlock safety lid with attached leads.
- Casting base.
- Four-pack each of plain & notched glass plates
- One acrylic blocker plate (used when running only one gel)
- Two 15-well, 1.5mm thick combs.
- Two 20-well, 1.5mm thick combs.
- Eight 1.5mm thick side spacers
System accessories
Choose amoung these accessories to customize each system for your specific needs.
- Alumina cooling plate. For use with cooling systems. This plate can be sandwiched between the gel and the inner buffer chamber to improve overall temperature uniformity.
- Casting base. For quick, efficient and leak-proof casting.
View the Galileo Bioscience electrophoresis and blotting system catalog
Galileo Reflection™ 1614 Dual-Gel large-Format Vertical Electrophoresis Unit
by Galileo bioscience
Run either one or two large format gels simultaneously on these versatile separation systems.
The 1614 unit is the ideal unit for separation of complex analytes. Designed to run one or two larger format 16cm wide x 14cm tall gels, the unit provides longer run lengths and increased separation capacity. The unique casting base allows both casting and running of the gel without unclamping from the upper buffer chamber, providing for safer and more convenient gel handling.
Water cooling feature is included for protocols that require it. Connections are easily made by attaching standard tubing over the 3/8″ barbed in/out ports provided on the device. Water may be provided by tap or other temperature controlled water source. Optional alumina backer plates may be used to facilitate cooling efficiency and uniformity, and is shown in the accessories list below.
System Features
The GalileoReflection™ 85-1614 complete system includes these features:
- Heavy duty upper buffer chamber with cooling port connections.
- Lower buffer chamber.
- Interlock safety lid with attached leads.
- Casting base.
- Four-pack each of plain & notched glass plates
- One acrylic blocker plate (used when running only one gel)
- Two 10-well, 1.5mm thick combs.
- Two 15-well, 1.5mm thick combs.
- Eight 1.5mm thick side spacers
System accessories
Choose amoung these accessories to customize each system for your specific needs.
- Alumina cooling plate. For use with cooling systems. This plate can be sandwiched between the gel and the inner buffer chamber to improve overall temperature uniformity.
- Casting base. For quick, efficient and leak-proof casting.
View the Galileo Bioscience electrophoresis and blotting system catalog
Galileo Reflection™ 2010 Dual-Gel Vertical Electrophoresis Unit
by Galileo bioscience
Run either one or two gels simultaneously on these versatile separation systems.
Similar to the 1010 unit but designed to run one or two larger format 20cm wide x 10cm tall gels. Unique casting base allows both casting and running of the gel without unclamping from the upper buffer chamber, providing for safer and more convenient gel handling.
Water cooling feature is included for protocols that require it. Connections are easily made by attaching standard tubing over the 3/8″ barbed in/out ports provided on the device. Water may be provided by tap or other temperature controlled water source. Optional alumina backer plates may be used to facilitate cooling efficiency and uniformity, and is shown in the accessories list below.
System Features
The GalileoReflection™ 85-2010-V complete system includes these features:
- Heavy duty upper buffer chamber with cooling port connections.
- Lower buffer chamber.
- Interlock safety lid with attached leads.
- Casting base.
- Two-pack each of plain & notched glass plates
- One acrylic blocker plate (used when running only one gel)
- Two 15-well, 0.8mm thick combs.
- Two 20-well, 0.8mm thick combs.
- Eight 0.8mm thick side spacers
System accessories
Choose amoung these accessories to customize each system for your specific needs.
- Alumina cooling plate. For use with cooling systems. This plate can be sandwiched between the gel and the inner buffer chamber to improve overall temperature uniformity.
- Casting base. For quick, efficient and leak-proof casting.
View the Galileo Bioscience electrophoresis and blotting system catalog
1515 Gel Unit
by Galileo bioscience
Extra width for increased sample thru-put. Holds up to 112 samples.Unit features RapidCast trays for quick in-unit gel casting of 12cm wide by 14cm long gels.
System description
The 1515 is ideal for guick screening of multiple samples, and if you choose Galileo microtiter combs, quick multi-channel loading too! The unit features the Galileo ExpressCast gel casting system for quick, tape-free gel casting and includes a built-in bubble level and leveling screws for convenient level adjustment. You may choose from a wide variety of comb options to customize your order.
System Features
The Galileo 1515 complete system includes these features:
- Heavy duty lower buffer chamber
- Interlock safety lid with attached leads
- End gated 15cm wide x 15cm long ExpressCast™ UV-transparent gel tray with built-in fluorescent ruler and 14 comb slots.
- Two 1.5mm x 17 tooth combs
- Two 1.5mm x 34 tooth combs
System accessories
Choose amoung these accessories to customize each system for your specific needs.
- Additional gel trays.
- A wide range of comb options.
- Gel loading guides. These guides fit into the comb slots of the gel tray, and have precision machined slots that provide accurate aligning of your multi-channel pipet during gel loading.
View the Galileo Bioscience electrophoresis and blotting system catalog
1214 Mini Gel Unit
by Galileo bioscience
This flexible system from Galileo is the perfect personal unit for a wide range of separation needs, and our most popular model.
Unit features RapidCast trays for quick in-unit gel casting of 12cm wide by 14cm long gels.
System description
Choose a complete system or build your own custom unit from the many system components we offer. The G-80-1214 gel system is supplied with a RapidCast™ gasketed gel tray for convenient gel casting directly in the buffer chamber. Choose from a wide variety of comb options. All are compatible with Owl Separation Systems B2A or similar devices. The teeth on combs marked as “microtiter” are uniformly spaced for easy loading with multichannel pipettors.System features
System Features
The 80-1214 complete system includes these features:
- Heavy duty lower buffer chamber
- Interlock safety lid with attached leads
- Gasketed (cast in place) 12cm wide x 14cm long UV-transparent gel tray with
- built-in fluorescent ruler and 2 comb slots.
- One 1.5mm x 12 tooth comb
- One 1.5mm x 20 tooth comb
System Options
System accessories
Choose amoung these accessories to customize each system for your specific needs.
- RapidCast casting base G-80-1214-RCGC. Accommodates up to three 1214 RapidCast gel trays for casting outside buffer chamber.
- Gel loading guide G-80-1214-MT2SLG. This guide fits into the comb slots of the gel tray, where it’s precision machined slots provide accurate positioning for your multi-channel pipet during gel loading.
View the Galileo Bioscience electrophoresis and blotting system catalog
0911 Mini Gel Unit
by Galileo bioscience
The Galileo 0911 is a mini-gel unit with extended run length for improved resolution. It also features a RapidCast gasketed tray for quick in-unit gel casting.
System description
The standard 0708 mini gel system includes a RapiCast™ gasketed gel tray for convenient gel casting right in the buffer chamber.
System features
The 0911 complete system includes these features:
- Heavy duty lower buffer chamber
- Interlock safety lid with attached leads
- Gasketed (cast in place) 9cm wide x 11cm long UV-transparent gel tray with built-in fluorescent ruler and 2 comb slots.
- One 1.5mm x 10 tooth comb
- One 1.5mm x 14 tooth comb
View available accessories: RapiCast 0911 Accessories
View the Galileo Bioscience electrophoresis and blotting system catalog
0708 Mini Gel Unit
by Galileo bioscience
Perfectly sized for rapid analysis of small analytes like PCR and RE fragments. This unit features a RapidCast gasketed tray for quick in-unit gel casting.
System description
The standard 0708 mini gel system includes a RapiCast™ gasketed gel tray for convenient gel casting right in the buffer chamber.
System features
The 0708 complete system includes these features:
- Heavy duty lower buffer chamber
- Interlock safety lid with attached leads
- Gasketed (cast in place) 7cm wide x 8cm long UV-transparent gel tray with built-in fluorescent ruler and 2 comb slots.
- One 1.5mm x 6 tooth comb
- One 1.5mm x 10 tooth comb
View available accessories: RapiCast 0708 Accessories
View the Galileo Bioscience electrophoresis and blotting system catalog
2340 Gel Unit
by Galileo bioscience
For long run lengths, maximum resolution, and really large sample capacity, look no further than the Galileo 2340 device. This unit also features the Galileo ExpressCast system for quick tape-less gel pouring.System description
The 2340 is our maximum capacity system. With a maximum run length of 25cm, the unit can provide very high resolution of complex analytes. Or, fitted with maximum capacity combs in all of the tray’s 12 comb slots, the unit can handle up to 600 samples. The 2340 features the Galileo ExpressCast gel casting system for quick, tape-free gel casting and includes a built-in bubble level and leveling screws for convenient level adjustment. You may choose from a wide variety of comb options to customize your order.
System Features
The Galileo 2340 complete system includes these features:
- Heavy duty lower buffer chamber
- Interlock safety lid with attached leads
- End gated 23cm wide x 40cm long ExpressCast™ UV-transparent gel tray with built-in fluorescent ruler and 12 comb slots.
- Two 1.5mm x 25 tooth combs
- Two 1.5mm x 50 tooth combs
System accessories
Choose amoung these accessories to customize each system for your specific needs.
- Additional gel trays.
- A wide range of comb options.
- Gel loading guides. These guides fit into the comb slots of the gel tray, and have precision machined slots that provide accurate aligning of your multi-channel pipet during gel loading.
View the Galileo Bioscience electrophoresis and blotting system catalog
2325 Gel Unit
by Galileo bioscience
Need long run lengths for maximum resolution, and large sample capacity too? Look at the features of the Galileo 2325 unit and we think you will find just what you need.
The 2325 is a full sized large capacity system. With a maximum run length of 25cm, the unit can provide high resolution of complex analytes. Or, fitted for maximum capacity, the unit can handle up to 500 samples. The 2325 features the Galileo ExpressCast gel casting system for quick, tape-free gel casting and includes a built-in bubble level and leveling screws for convenient level adjustment. You may choose from a wide variety of comb options to customize your order.
System Features
The Galileo 2325 complete system includes these features:
- Heavy duty lower buffer chamber
- Interlock safety lid with attached leads
- End gated 23cm wide x 25cm long ExpressCast™ UV-transparent gel tray with built-in fluorescent ruler and 14 comb slots.
- Two 1.5mm x 25 tooth combs
- Two 1.5mm x 50 tooth combs
System accessories
Choose amoung these accessories to customize each system for your specific needs.
- Additional gel trays.
- A wide range of comb options.
- Gel loading guides. These guides fit into the comb slots of the gel tray, and have precision machined slots that provide accurate aligning of your multi-channel pipet during gel loading.
View the Galileo Bioscience electrophoresis and blotting system catalog
2314 Gel Unit
by Galileo bioscience
A high-capacity system in a mini-gel size, the Galileo 2314 unit enables rapid separation of large numbers of samples.
The 2314 wide format system accomodates up to 200 samples per run, for quick separation and high thru-put. Because of the wide format of the Galileo 2314 unit, the 23cm wide by 14cm long tray is non-gasketed. Gel casting can be accomplished by taping, or we recommend the G-80-WADJ-CST multi-casting unit for even quicker and more convenient gel casting. The gel tray is UV transmissible, includes an imprinted fluorescent ruler, and has 4 comb slots. Choose from a wide variety of comb options, all with micro-titer spacing for easy loading with multi-channel pipets.
System Features
The Galileo 2314 complete system includes these features:
- Heavy duty lower buffer chamber
- Interlock safety lid with attached leads
- Non-gasketed 23cm wide x 14cm long UV-transparent gel tray with built-in fluorescent ruler and 4 comb slots.
- Four 1.5mm x 50 tooth combs
- Opaque well visualization plate.
System accessories
Choose amoung these accessories to customize each system for your specific needs.
- G-80-WADJ-CST multi casting platform.
- Additional 4 slot gel trays.
- A wide range of comb options.
- Gel loading guides. These guides fit into the comb slots of the gel tray, and have precision machined slots that provide accurate aligning of your multi-channel pipettor during gel loading.
View the Galileo Bioscience electrophoresis and blotting system catalog
1525 Gel Unit
by Galileo bioscience
Perfectly sized for multi-channel sample loading. Holds up to XXX samples.System description
The 1525 is a long run length mini-gel system. With a maximum run length of 25cm, the unit can provide high resolution of complex analytes. Or, fitted for maximum capacity, the unit can handle up to xxx samples. The 1525 features the Galileo ExpressCast gel casting system for quick, tape-free gel casting and includes a built-in bubble level and leveling screws for convenient level adjustment. You may choose from a wide variety of comb options to customize your order.
System Features
The Galileo 1525 complete system includes these features:
- Heavy duty lower buffer chamber
- Interlock safety lid with attached leads
- End gated 15cm wide x 25cm long ExpressCast™ UV-transparent gel tray with built-in fluorescent ruler and 14 comb slots.
- Two 1.5mm x 17 tooth combs
- Two 1.5mm x 34 tooth combs
System accessories
Choose amoung these accessories to customize each system for your specific needs.
- Additional gel trays.
- A wide range of comb options.
- Gel loading guides. These guides fit into the comb slots of the gel tray, and have precision machined slots that provide accurate aligning of your multi-channel pipet during gel loading.
View the Galileo Bioscience electrophoresis and blotting system catalog
1325 Gel Unit
by Galileo bioscience
The Galileo 1325 unit is a medium capacity system with long run lengths for high resolution. The ExpressCast™ gel casting system makes gel pouring quick, easy and tape-less!
The 1325 is a medium capacity system. With a maximum run length of 25cm, the unit can provide high resolution of complex analytes. Or, fitted with maximum capacity combs in all of the tray’s 6 comb slots, the unit can handle up to 112 samples. The 2325 features the Galileo ExpressCast gel casting system for quick, tape-free gel casting and includes a built-in bubble level and leveling screws for convenient level adjustment. You may choose from a wide variety of comb options to customize your order.
System Features
The Galileo 1325 complete system includes these features:
- Heavy duty lower buffer chamber
- Interlock safety lid with attached leads
- End gated 13cm wide x 25cm long ExpressCast™ UV-transparent gel tray with built-in fluorescent ruler and 6 comb slots.
- One 1.5mm x 12 tooth combs
- One 1.5mm x 16 tooth combs
- One 1.5mm x 20 tooth combs
System accessories
Choose amoung these accessories to customize each system for your specific needs.
- Additional gel trays.
- A wide range of comb options.
- Gel loading guides. These guides fit into the comb slots of the gel tray, and have precision machined slots that provide accurate aligning of your multi-channel pipet during gel loading.
View the Galileo Bioscience electrophoresis and blotting system catalog
