Fluorescence

View the Cellometer Auto 2000 brochure

Automatic cell viability counter with dual fluorescence.  Consistent, reliable, and accurate for primary cells.

Cellometer Auto 2000 Standard Assays

View the Nexcelom Cellometer family brochure

Cellometer Vision is a line of simple to use, automated cell counters and cell analyzers with diverse functions. It combines brightfield microscopy and multi-channel fluorescence images to generate cell count and fluorescence data. It is most suitable for determining cell concentration and viability in complex samples. The sophisticated data analysis software allows detailed studies of select cell population.

Cellometer Vision is the Cell Counter Best Suited For:

• Total cell concentration for highly viable cell population
• Counting primary hepatocyte cells
• Live cell concentration and viability using trypan blue
• Cell size measurement
• Identify and count cells based on cell size difference
• Capture and store cell images
• Total nucleated cell concentration without lysing non-nucleated cells
• Live nucleated cell concentration without lysing non-nucleated cells
• Fluorescence based live cell concentration and viability for cell lines
• Transfection efficiency by GFP
• Transfection efficiency by YFP
• Transfection efficiency by RFP
• Live cell concentration and viability using two fluorescents in one sample
• AO, PI, EB, DAPI, Hoechst

1) Pipette 20µL Sample
2) Insert Slide
3) Get Data

Whether you need to determine rates of GFP transfection, are involved in primary hepatocyte isolation and need to count primary hepatocytes from mouse, human, rat or other types of samples, the Cellometer Vision automated cell counter can offer you some value.  Contact us to learn more about this instrument or to have us visit the lab for a demonstration.  We work closely with our customers and work to place a cell counter in the lab that best fits your needs.

View the Nexcelom Cellometer family brochure

  Product literature                                              Contact us

SPECIAL OFFER: PURCHASE A PXi 6 for $12,995.00 or  a PXi 6 Touch for $13,750.00.  Offer valid only through June 30, 2013!

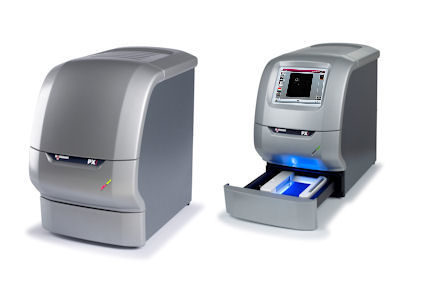

Syngene PXi compact multifunctional gel documentation (gel doc) imaging system

The Syngene PXi and PXi Touch are new high resolution, multi-application image analysis systems. The new design is compact, easy to use and offers full automation in the capture of chemiluminescent and fluorescent blots, visible gels and blots and even 2D gels.

PXi/PXi Touch are available in three versions with a 4, 6 or 8 million pixel camera and suitable lens. The high performance cameras result in the system having exceptional sensitivity. Chemiluminescence blots and faint fluorescent bands can therefore be easily imaged and captured. The PXi Touch has its own built-in screen and processor whereas the PXi is used with an external PC.

PXi/PXi Touch can be used for a wide range of applications. A number of lighting options can be utilised including IR illumination, Red light, Blue light, Green light and the UltraSlim blue LED transilluminator. An integral 7 position filter wheel can accommodate a wide range of Syngene filters. PXi/PXi Touch are controlled by the acclaimed GeneSys acquisition and capture software. Using its vast database, GeneSys can automatically configure PXi/PXi Touch to capture any type of image.

This high performance range has been designed to be able to excel at a wide range of applications. The PXi/PXi Touch therefore makes the ideal workstation for any busy laboratory. Its sleek styling compliments any laboratory while its ease of use will attract a wide number of users working across numerous fields.

Why buy the PXi?

New England BioGroup knows and understands gel documentation systems.  We can work with you to help you select the system that best fits your needs and budget.  When you are ready, a simple phone call or e-mail is all that is needed to "get the ball rolling".  In the meantime, here are some of the unique  features of the PXi:

Performance

The PXi system offers superior sensitivity that is capable of imaging a wide range of applications. Image quality is superb whether you are working with chemiluminescent blots, fluorescent blots and gels, IR gels and 2D gels. With GeneSys control software no other system on the market offers this level of control. If you are looking for high quality and high performance then PXi is your number 1 choice.

High specification

At the heart of PXi is a new generation camera which has 6.3m pixels. These pixels are super sized at 9um x 9um, giving the camera outstanding sensitivity. The camera is cooled to enable longer exposures to be used which can be a necessity for chemiluminescence and for some fluorescence applications. The superior sensitivity ensures that even faint blots or gels can be imaged with the PXi.

Modular

PXi can use a number of different lighting options including plug and play LED modules for Red, Green, Blue and IR light. These novel lighting systems provides the user with the ability to perform coloured fluorescent, multiplex and colorimetric imaging. The new UltraSlim blue LED transilluminator provides you with the ideal solution for imaging ‘safe dyes’.

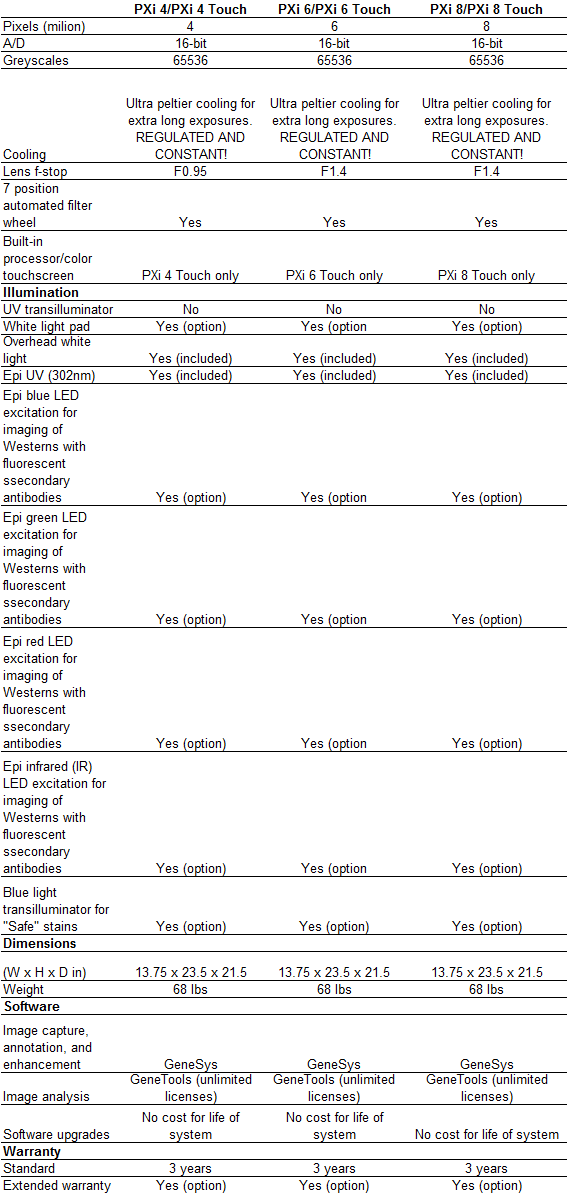

Product Specifications:

Syngene PXi product specification
