DeNovix DS-11 and DS-11+ Spectrophotometer

pdf (Duplicate)Product Literature                        Specifications                       Publications


Trade-in any existing UV/Vis spectrophotometer in your lab and receive a discount on a DS-11 or DS-11+.

Denovix DS-11 microvolume UV/Vis spectrophotometers


The DeNovix DS-11 and DS-11+ (microvolume and cuvette port) takes the world of microvolume spectrophotometry to a whole new level.  Its compact, stand-alone design allows it to operate without a PC and does not require any software installation.  Just turn it on and it’s ready to go.  The DS-11 Spectrophotometer was designed by a team of experienced engineers and life scientists to deliver rapid and reliable quantification of nucleic acid and protein samples (patent pending). Busy labs will love the 4 second measurements and the time-saving AutoRun function. You’ll also love the choice of four attractive colors (arctic white, Brazilian blue, fire red and Tungsten gray)!

Key Features of the DS-11

  •  Android™ operating system featuring intuitive DeNovix EasyApps® software
  •  Stand alone system – no separate PC or software installation is required
  •  Ethernet, WiFi and USB connectivity
  •  Brilliant 7″ Hi-Definition, glove-compatible touchscreen
  •  Outstanding performance measuring proteins
  •  0.5 to 1 ul samples
  •  Ultra high absorbance- up to 25,000 ng/ul dsDNA or 750 mg/ml BSA
  •  Full spectrum UV-Vis analysis (190-840 nm)
  •  Small footprint- only 20 x 33 cm
  •  AutoRun function
  •  4 second measurement time
  •  Maintenance free
  •  Two models: microvolume only (DS-11) and microvolume plus cuvette (DS-11+)

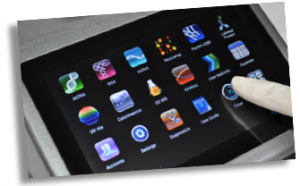

EasyApps® Softwaresoftware2-300x186

The DeNovix DS-11 and DS-11+ Spectrophotometer is a compact, stand-alone instrument with intuitive, easy-to-use apps for quantifying DNA, RNA and Protein.

Pre-configured apps ensure optimized workflows while the streamlined yet powerful Custom Formula Methods app enables researchers to quickly create and save new methods.

Key Features

  •   Intuitive app Icons for quick recognition
  •   Familiar Android navigation touch gestures and functional icons
  •   Fluid pinch, zoom glove compatible touch interface
  •   AutoRun option for streamlined operation
  •   Optimized screens for reports and graph overlays
  •   Password protected accounts for project and data management
  •   Absorbance represented as 1 cm equivalent for all apps- no confusion between applications
  •   Sample name field is key-focused for easy barcode reader use
  •   All data is automatically archived and easily exported in tab-delimited format

SmartPath Technology

SmartPath® Technology

Automatic Path Length Adjustment

The DS-11 proprietary SmartPath® Technology in conjunction with DeNovix's innovative microvolume design (patent pending) automatically uses the optimal path length when measuring a sample. Other microvolume spectrophotometers may offer multiple path lengths, but many require the user to guess which path length is needed prior to measuring the sample. The DS-11 uses real-time absorbance data to determine the best path length (ranging from 0.03-0.5 mm) to use for each measurement.

Ultra High Absorbance

The DS-11 can measure samples with absorbance values as high as 500 absorbance units (at a 1 cm equivalent path length). This translates into 750 mg/ml of BSA protein or 25000 ng/ul of dsDNA. (In reality, concentrations this high may be too viscous to measure but the system uses these numbers for reference only). This ultra high absorbance capability is achieved by using a remarkably small path length of 0.03mm (30 microns) enabled by our SmartPath® Technology. Even at this short path length, typical CV of measurements is less than 3%.

Truly 1.0 ul Sample Volumes

A key feature of the DS-11 is that the longest path length used (0.5 mm path) is shorter than the 1.0 mm path used by other microvolume spectrophotometers. This enables the DS-11 to truly measure 1.0 ul samples, virtually eliminating the possibility of erroneous results due to sample column breakage.

Super Precision

The reproducibility of measurements on the DS-11 is an important performance feature. For example, replicates of 500 ng/ul dsDNA samples typically result in CV’s of less than 1%.

No Recalibration Required

By using SmartPath® Technology, the DS-11 does not rely on fixed path length calibrations and therefore does not require regular calibration checks.  However, it is good practice to periodically confirm proper instrument operation.  DeNovix offers the LC-NA standard to easily verify proper operation of the DS-11.
