Blue Light Transilluminator

A blue light transilluminator is often used as an alternative to a UV transilluminator when users wish to use ‘safe dyes’ instead of Ethidium Bromide. A blue light transilluminator is a ‘safe’ light source, in that the user is not exposed to harmful UV radiation and samples are free from photo-nicking.
Blue Light Transilluminator – UltraSlim LED Blue

Blue Light Transilluminator – UltraSlim LED Blue

$398.00

UltraSlim Blue LED transilluminator for gels up to 12cm x 10cm (part number: NEB-SLB-01W)- One year warranty and FREE SHIPPING!

Need a bigger imaging area?  Check out our UltraBright blue light transilluminator!

A video demonstration of the UltraSlim illuminating a DNA gel stained with SYBR Safe gel stain:

For easy visualization of DNA gels stained with:

  • SYBR Safe
  • Ethidium Bromide (EtBr)
  • Gel Green
  • UltraPower DNA Safe Dye
  • Midori Green

High Intensity Blue Light Transilluminator with 108 LEDs.

This exciting product uses a high intensity LED array which can illuminate a range of dyes  including GelGreen, SYBRSafe, EtBr and the new UltraPower DNA safe dye. UltraSlim-LED provides a uniform and bright excitation across gels up to 10 x 12cm.

Slim_trans_2

Even Illumination Over the ENTIRE Viewing Area

The UltaSlim is very compact and has two arrays of  54 high intensity 470nm blue LEDs. As the UltraSlim illuminates samples from the side, it provides a low signal to noise ratio (S/N) and extremely even illumination throughout the entire sample.  A built-in filter/lid provides the optimum viewing conditions and is ideal for band cutting. Some blue light transilluminators use bulbs, which create "peaks and valleys" of light intensity.  Others employ a very small array of LED bulbs mounted below the viewing area.  However, the LEDs do not cover the entire surface of the viewing area.  As such, light may not evenly distributed, making bands appear dimmer than they may be or, even worse, faint bands may not be visualized.

All UltraSlim-LED units are powered using a universal voltage, 24V power supply. The overall dimensions are 21.0W x 21.0D x 3.0H cm. UltraSlim-LED can be used in any Syngene darkroom or as a stand-alone unit.
(All trademarks acknowledged)

Safe to use and does not damage DNA

Despite the increased interest in "safe/non-toxic" DNA gel stains such as SYBR Safe or GelGreen, many labs still use UV transilluminators on the bench.  Exposure to UV can cause sunburns to skin or eyes.  Additionally, UV can accidentally crosslink and damage your DNA.  As the UltraSlim, or UltraBright, units use blue light, there is no risk of sunburn or damage to DNA.  Simply put, this is a safer system to use on the bench.  To read more about safety of blue light transilluminators, please click here.

Why buy this product?

1. No Separate Pieces.  No Need to Purchase or Share (eww!) Amber Viewing Glasses

The UltraSlim has an attached variable position viewing screen/cover.  Should you wish to extract bands from gels, simply lift the cover to a comfortable viewing angle and it will remain in place.  The cover never touches your gels.  Additionally, you do not need to worry about losing a separate cover or glasses with the UltraSlim.

3. High Sensitivity
Using 108 high intensity LEDs, the UltraSlim-LED illuminates a wide range of samples, producing fluorescence in even the faintest of bands. The illumination is high intensity and uniform, giving high quality images for publication or analysis.

4. Small footprint
The UltraSlim-LED can be used as a stand-alone transilluminator and takes up very little laboratory bench space. Its overall dimensions are only 21 x 21cm and it is easily portable to any location. The UltraSlim-LED is compatible with any Syngene darkroom.

5. Uses a wide range of dyes
The UltraSlim-LED can be used with Ethidium bromide, GelGreen, GelRed, SYBR Gold, SYBR Green, SYBRSafe, SYPRO Orange, SYPRO Ruby and UltraPower. (All trademarks acknowledged).

Specifications:

Dimension - 210(d) x 210(w) x 30mm

Gel size (mm) - 100 x 120

Wavelength (mm) - 470nm

Power - DC 24v 0.65A

Weight - 1.3kg

Old Price: $625.00

Price: $398.00

You save: $227.00! (36.32%)

Loading Updating cart...
Sale
Blue Light LED Transilluminator – UltraBright

Blue Light LED Transilluminator – UltraBright

$650.00

UltraBright blue light transilluminator for gels up to 20cm x 16cm (part number: NEB-LB-16). One year warranty and FREE SHIPPING!

Check out our UltraSlim Blue Light LED Transilluminator for $398.00!

Video demonstration of one of our blue light transilluminators:

For easy visualization of DNA gels stained with:

  • SYBR Safe
  • Ethidium Bromide (EtBr)
  • Gel Green
  • UltraPower DNA Safe Dye
  • Midori Green

The Next Generation of Blue Light Transilluminators. Works with gels up to 20cm x 16cm.

UltraBrigh HRNew England BioGroup, LLC is  proud to offer the UltraBright-LED, a new generation of blue light transilluminator. The UltraBright-LED has two side-mounted high intensity LED arrays. This produces uniform and bright excitation at 470nm making it suitable for a wide range of dyes.

The UltraBright-LED is compatible with the following dyes: GelGreen, SYBR Green, SYBR Gold, SYBR Safe, UltraSafe Blue and even ethidium bromide stained DNA gels. Gels up to 20 x 16cm can be viewed. The use of special filter material built into the lid of the UltraBright transilluminator greatly enhances the contrast of bands providing the optimum viewing conditions that are ideal for image capture and band cutting.

UltraBright-LED is powered using a universal voltage, 24V power supply. The overall dimensions are 33.0W x 28.0Dx 9.0H cm. The UltraBright-LED can be used in a Syngene G:BOX or as a stand-alone unit.



Safe to use and does not damage DNA

Despite the increased interest in "safe/non-toxic" DNA gel stains such as SYBR Safe or GelGreen, many labs still use UV transilluminators on the bench.  Exposure to UV can cause sunburns to skin or eyes.  Additionally, UV can accidentally crosslink and damage your DNA.  As the UltraSlim, or UltraBright, units use blue light, there is no risk of sunburn or damage to DNA.  Simply put, this is a safer system to use on the bench.  To read more about safety of blue light transilluminators, please click here.

Why buy this product

  • High Sensitivity
    Using 224 high intensity LEDs, the UltraBright-LED illuminates a wide range of samples, producing fluorescence in even the faintest of bands. The illumination is high intensity and uniform, giving high quality images for publication or analysis.
  • Uniformity of light distribution over the entire surface area
    Our high intensity LED are placed equally on both sides of the unit (112 on each side), giving the instrument very intense and uniform light distribution over the entire surface area. Other blue light transilluminators use bulbs, or a very small array of LED bulbs which do not cover the entire surface of the viewing area.  As such, light may not evenly distributed, making bands appear dimmer than they may be or, even worse, faint bands may not be visualized.
  • Small footprint
    The UltraBright-LED can be used as a stand-alone transilluminator and takes up very little laboratory bench space. Its overall dimensions are only 33cm x 28cm and it is easily portable to any location. The UltraBright-LED is compatible with any Syngene G:BOX system.
  • Uses a wide range of dyes
    The UltraBright-LED transilluminator can be used with Ethidium bromide, GelGreen, SYBR Gold, SYBR Green, SYBRSafe, SYPRO Orange, SYPRO Ruby UltraSafe Blue. (All trademarks acknowledged).

Specification

Dimension - 330(d) x 210(w) x 90(h)mm

Gel size (mm) - 200 x 160

Wavelength (nm) - 470nm

Power - DC 24v 0.65A

Weight - 2.3kg

Old Price: $900.00

Price: $650.00

You save: $250.00! (27.78%)

Loading Updating cart...
Sale

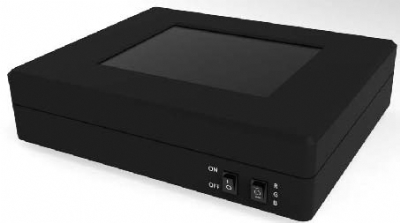

Triple Wavelength Blue/Green/Red LED Transilluminator – UltraBright

Triple Wavelength Blue/Green/Red LED Transilluminator – UltraBright

$950.00

FREE SHIPPING!

TRIPLE WAVELENGTH (NEB-LB-17)!  The Next Generation of LED Light Transilluminators!

New England BioGroup, LLC is  proud to offer the UltraBright TRIPLE WAVELENGTH Blue/Green/Red LED transilluminator. The UltraBright-LED has two side-mounted high intensity LED arrays. This produces uniform and bright excitation at 470nm, 530nm, and 630nm, making it suitable for a wide range of dyes.

A specific filter should to be used in over the gel or in front of a camera, researchers can use three wavelengths in the same instrument to perform gel imaging! This makes gel imaging easier.  Optional filter screens are available for blue and green wavelengths.  Red filter screens are currently not available.  If you need a filter for your gels, please consult with a New England BioGroup sales specialist.

UltraBright-Triple wavelength LED is powered using a universal voltage, 24V power supply. The overall dimensions are 33.0W x 28.0Dx 8.0H cm.

Why buy this product

  • Safer to replace UV
  • Strong Red/Green/Blue LEDs for excitation
  • Triple wavelengths embedded in the same transilluminator
  • Delta LED arrangement
  • High uniformity across viewing area
  • US patent pending
  • CE/FCC Certified

Specification

  • Illumination type: LED
  • Wavelength (nm): 470 (Blue), 530 (Green), 630 (Red)
  • Dimension (mm): 340L*280W*80H
  • Viewing surface (mm): 160D*200W
  • LED lamps arrangement: Delta matrix
  • LED lifetime: 50,000 hrs
  • Weight (Kg): 3.6
  • Power: 24V - 1.25A

Old Price: $1,300.00

Price: $950.00

You save: $350.00! (26.92%)
